RSD215EK Series

IP66/ IP69K Rugged Stainless Solution
* 304/ V2A stainless as default, Optional 316/V4A Stainless
* Full IP69K Certified
* 21.5” LCD Panel with PCAP Multi-Touch
* Touch Power button
* VESA Mount, YOKE Mount
* Safety/EMC: CE/FCC Class B

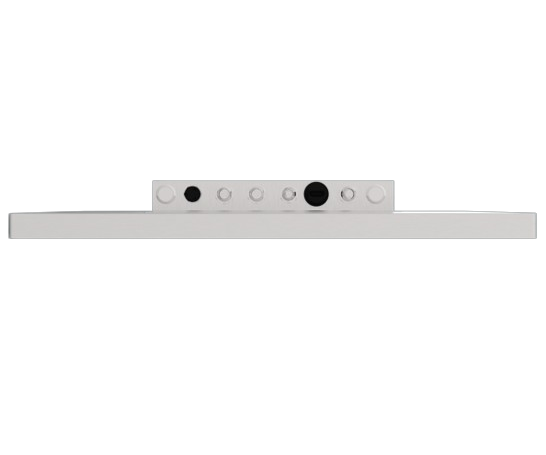

RSD215EK Series

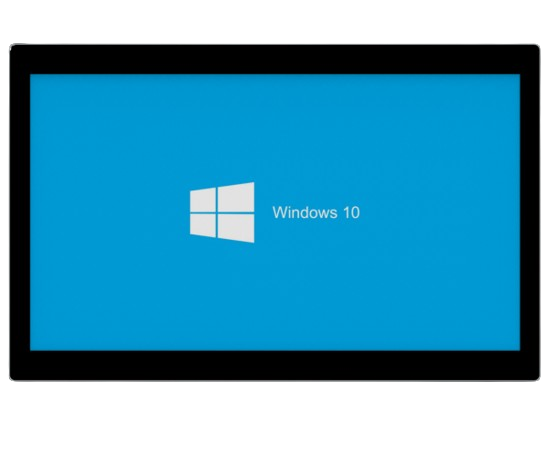

RSD215EK Series

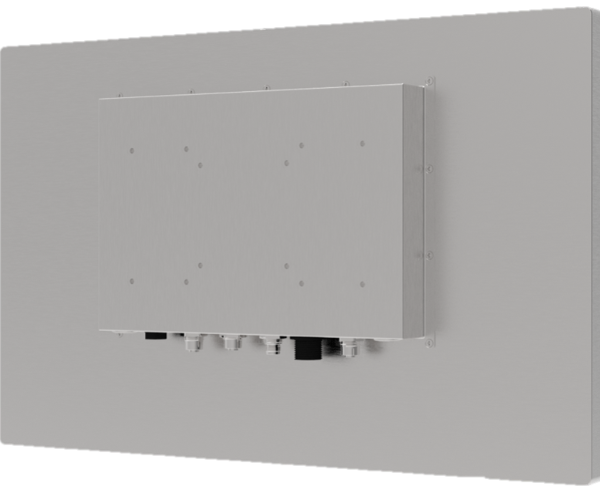

RSD215EK Series
  • Product Features
  • Technical
Product Features
 304/ V2A stainless as default, Optional 316/V4A Stainless
 Full IP69K Certified
 21.5” LCD Panel with PCAP Multi-Touch
 Touch Power button
 VESA Mount, YOKE Mount
 Safety/EMC: CE/FCC Class B
Specification
Chassis
  • 304/ V2A Stainless Steel (316/ V4A Optional)
  • Dimension: 517 x 328.5 x 60 mm
  • Color: Silver
  • Fan-less
LCD Panel
  • 19.0"
  • Resolution: 1920x1080
  • Brightness: 500 nits
  • Contrast Ratio 1000:1
  • Support Color: 16.7M
  • Viewing Angle: 89/89/89/89
  • P-CAP Touch 10-Point Multi-touch Air Bonding (Optical Bonding For Option)
Video Input
  • 1 x HDMI, 1 x VGA (RSD215EK-N6)
  • 1 x VGA, 1 x DVI (RSD215EK-N0)
  • 1 x HDMI, 1 x DP, 1 x VGA (RSD215EK-N7)
I/O Interface
  • 1 x USB Type A for Touch
  • 1 x UART/ RS232 for OSD remote control (Optional)
Buttons
  • 1 x Power Button
  • 1 x Touch Power Button
Power
  • DC 12V Input, M12 Connector
  • DC 9~36V Input (Optional)
Mounting
  • VESA Mount (100*100、200*100)
  • YOKE Mount (Optional)
Reliabitlity
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -20 ~ 60°C
  • Humidity: 10%~90%, non-condensing
  • IP69K Certified
  • Safety/EMC: CE/FCC Class-B
Downloads
RSD215EK 2D Drawing 下載
