FEB600

Industrial HMI Panel PCs

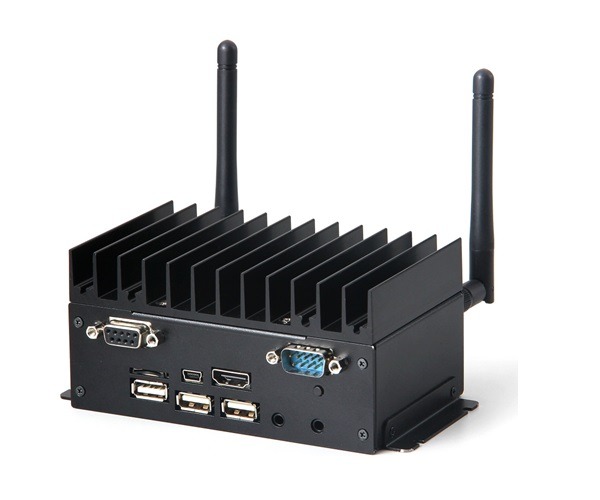

The FORENEX FEB600 BoxPC is an ultra-compact solution designed to take full advantage of ARM-based ultra-energy-saving and easily create a variety of easy-to-assemble, fanless system designs for a wide range of industrial automation, transportation, HMI and energy management applications.

The FEB600 is a completely fanless system. Its rugged design can endure a wide operating temperature range of -20 ° C to 70 ° C, and it consumes extremely low power under typical operating conditions. In addition, an optional miniPCIe slot is provided for 5G / Wi-Fi connection. Comprehensive I / O functions on the front and rear panels make the FEB600 a flexible solution for a variety of embedded applications.
Product Features
 FEB600 fanless, ruggedized system
 NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz
 1x GigE, 1x 2.4/5G Wi-Fi
 Support OS Android 6.0, Linux 4.1.15 Yocto Project with QT5.5
 SD/ eMMC boot-up selectable
 Power Over Ethernet ( Optional)
Specification
Processor NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz
Memory 2GB DDR3-1066 SDRAM (Up to 4GB)
Storage 8GB eMMC (Up to 16GB)
OS
  • Android 6.0
  • Linux 4.1.15 (AMOS-820-QP SKU)
  • Yocto Project2.0 with QT 5.4 (Weston Wayland UI)
Display Interface 1.4 port, max. 1080P
Front Panel I/O
  • 1 x 2-pole Terminal DC jack.
  • 1 x Power LED & WLAN/WPAN/WWAN LED (if Wi-Fi has installed)
  • 1 x COM1 port (supports 5-wire TX/RX/RTS/CTS) RS232 DTE mode/RS485/RS422
  • 1 x Gigabit Ethernet port (supports optional IEEE802.3 af type 1)
  • 1 x Micro SD/eMMC boot select switch
  • 2 x Antenna holes for 5G/Wi-Fi
Rear Panel I/O
  • 1 x Reset button
  • 1 x HDMI® port
  • 1 x Mini USB 2.0 type B port support OTG
  • 3 x USB 2.0 type A ports
  • 1 x Micro SD/SDHC card slot
  • 1 x CAN/Debug port (CAN Protocol specification Version 2.0 B through a cable)
  • 1 x DIO port supports eight GPIOs
  • 1 x Audio jack for Line-out(default)/Earphone-out(optional)
  • 1 x Audio jack for Mic-in(default)/Line-in(optional)
Operating Temperature -20°C ~ 70°C
Operating Humidity 10% to 90% (non-condensing)
Cooling System Fanless design
Dimension ( W x D x H) 143mm x 74mm x 60mm
Power 1 x 2-pin Terminal Block 12V DC-in
PoE (Optional) Supports Power Device(PD): follows IEEE 802.3 at (25W)
Downloads
FEB600 2D Drawing 下載
FEB600 V10 User manual 下載
FEB600 Flyer 下載
