Industrial HMI Panel PCs

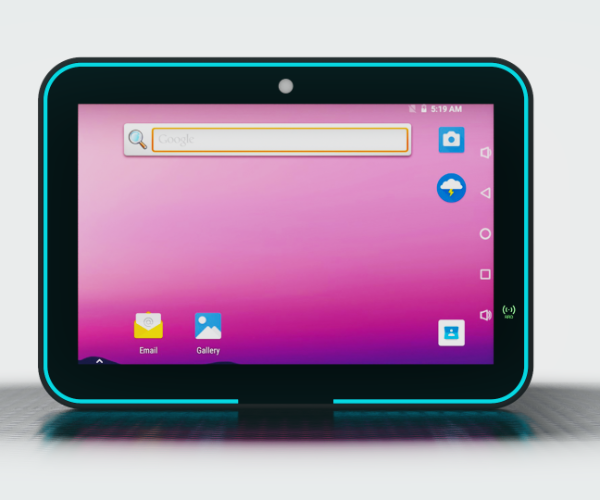

.The FES101E6 HMI Panel-PC is designed to be an ultimate solution for either intelligent buildings or industrial automation.
.The PoE+(25.5W) designed to transfer the data electrical power resulting in a reduction of installation costs and power consumption.
.The Optical Fiber LED Light Bar has better color and visibility to help control the status of the running processes afar, yet saving energy by keeping display turned off.
. The Integrated camera and RFID technology limits access for secure purpose.
.A truly flat and front IP65 surface is not only easy to clean and made for voiding clogged dust on the edges but also avoiding splashing water.
Product Features
 Chassis Case: Metal with Plastic Frame & Surround Optic-Fiber Status Light Bar
 TFT Panel: 10.1” IPS, 1280x800, 16.7M colors, 300 nit, (U/L/D/R): 85/85/85/85
 Touch Panel: PCAP Multi-Touch
 Operating System: Android 7.1/ Debian 9.0
 Waterproof Rating: Front IP65
 Mounting: Panel mounting , VESA mounting,Clips mounting
 Power: 802.3at Type2, PoE+
 EMI: CE/FCC Class B
  • ABS plastic Bezel w/ RGB-Optical-Fiber (Status Light Bar), Metal rear
  • Dimensions (mm): 260.4 x 184.9 x 36.3
  • Color Black
  • Fanless
LCD Panel
  • 10.1"
  • 1280(RGB) x 800
  • 300 cd/m² (typ.)
  • 800:1(typ.)
  • 85/85/85/85 Deg
  • P-CAP Touch 10-Point
Processor (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory LPDDR3-1866-2GB (Up to 4GB)
  • eMMC-16GB
  • 1 x Micro SD/SDHC slot (Up to 1TB)
Display 1 x Type A
  • 1 x Speaker (1W)
  • 1 x Camera Front 5-megapixel (CMOS) w/ Mic x1 (Optional)

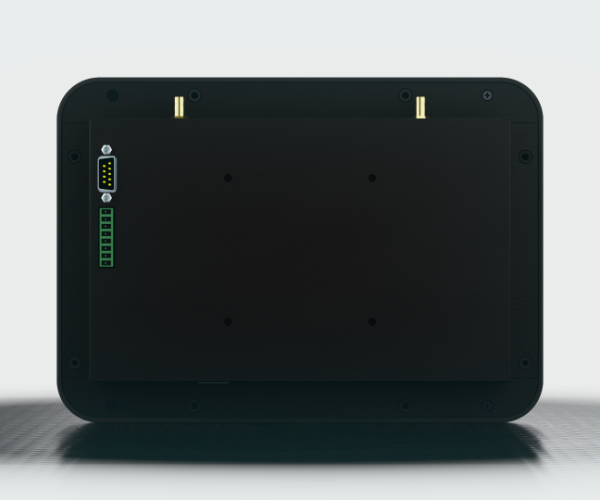

I/O Interfaces
  • 1 x full modem RS-232/422/485 (DB-9)
  • GPIO 6 bit (3 in, 3 out)
  • 1 x GigE RJ45 w/ 802.3 at Type2 “PoE+”
  • 1 x USB 3.2 Gen 1 (5Gb/s) Type A-OTG
  • 1 x USB 2.0 Type A
Wireless Communication (Optional)
  • WIFI + BT V4.1 (Optional)
  • HF 13.56 MHz RFID
  • 4G LTE module
LED & Button (Optional)
  • 1 x Power LED, 1 x BT LED, 1 x Wi-Fi LED
  • 1 x Reset Tact Switch
  • Android 7.1/8.0
  • Linux Debian 9.0
  • Watch Dog Timer: Support
  • Input: DC 12V (Terminal block-2pin-3.81mm)
  • Consumption: 12V @ 1.2A (MAX. 14.4w)
  • VESA Mounting (mm): 75 x 75
  • Panel Mounting / Clips Mounting
  • Operating Temperature -10°C ~ 50°C with air flow
  • Storage Temperature -20°C ~ 60°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 1.35 Kg
  • Safety/EMC CE/FCC class-B compliant
