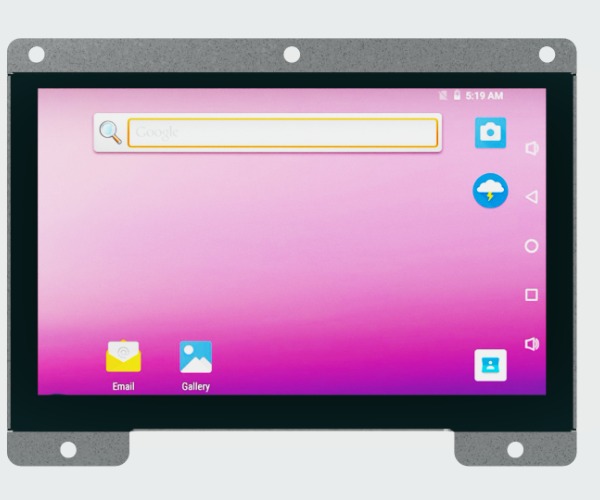

FOP050E0-M6

Industrial HMI Panel PCs
Chassis Case: Metal Open Frame
TFT Panel: 5”, 800x480, 16.7M colors, 400 nit, (U/L/D/R): 80/80/80/80, Contrast Ratio: 1000
Touch Panel: PCAP Multi-Touch
Operating System: Android 9.0 /Yocoto Linux + QT5.4/ Ubuntu
Waterproof Rating: None
Mounting: Panel mounting
Power: 12V DC Power
FOP050E0-M6
FOP050E0-M6
FOP050E0-M6
  • Product Features
  • Technical
Product Features
 Chassis Case: Metal Open Frame
 TFT Panel: 5”, 800x480, 16.7M colors, 400 nit, (U/L/D/R): 80/80/80/80, Contrast Ratio: 1000
 Touch Panel: PCAP Multi-Touch
 Operating System: Android 9.0 /Yocoto Linux + QT5.4/ Ubuntu
 Waterproof Rating: None
 Mounting: Panel mounting
 Power: 12V DC Power
Specification
Chassis
  • Metal Open Frame
  • Dimensions(mm) 122.7*92.2*41.94
  • Color SECC
  • Fanless
LCD Panel
  • 5"
  • 800 x 480
  • 400 cd/m² (typ.)
  • 80/80/80/80 Deg.
  • PCAP Touch
Processor NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz
Memory 1GB DDR3-1066 SDRAM (Up to 2GB)
Storage 8GB eMMC (Up to 16GB)
OS
  • Android 9.0
  • Yocoto Linux + QT5.4
  • Ubuntu
Display Interface HDMI 1.4 port, max. 1080P

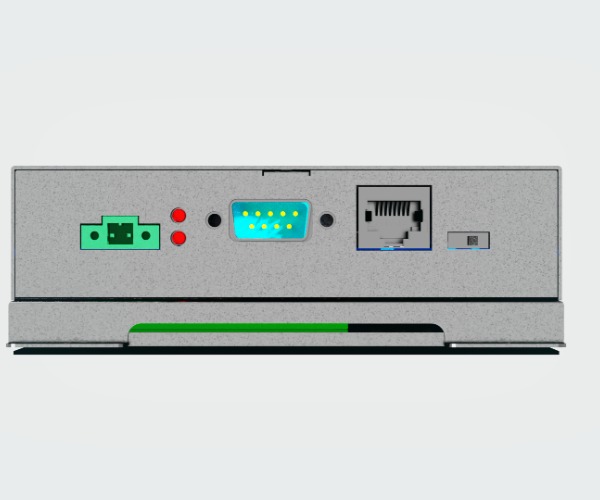

Button Panel I/O
  • 1 x 2-pole Terminal DC jack.
  • 1 x Power LED & WLAN/WPAN/WWAN LED (if Wi-Fi has installed)
  • 1 x COM1 port (supports 5-wire TX/RX/RTS/CTS) RS232 DTE mode/RS485/RS422
  • 1 x Gigabit Ethernet port (supports optional IEEE802.3 af type 1)
  • 1 x Micro SD/eMMC boot select switch

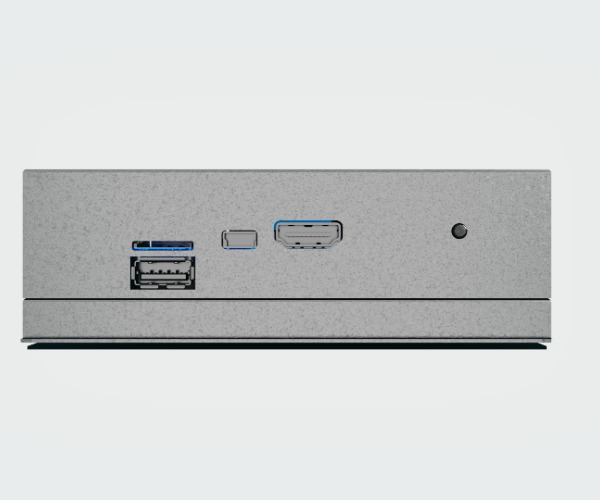

Top Panel I/O
  • 1 x Reset button
  • 1 x HDMI port
  • 1 x Mini USB 2.0 type B port support OTG
  • 1 x USB 2.0 type A ports
  • 1 x Micro SD/SDHC card slot
  • 1 x CAN Bus DB9 Connector (Optional)
Power
  • 1 x 2-pin Terminal Block 12V DC-in
  • 1 x 3-pin Terminal Block 9~36V DC-in (Optional)
Downloads
FOP050E0-M6 2D Drawing 下載
FOP050E0-M6 Datasheet 下載
