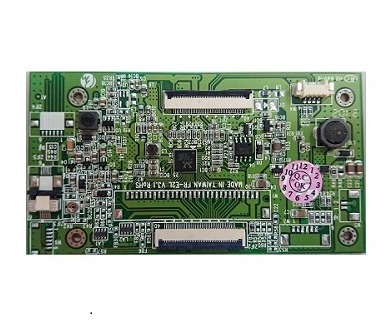

FR-e2L
FR-e2L
eDP to LVDS
eDP to LVDS dualCH
  • 2-Lane DisplayPortTM receiver speed up to 1.62/2.7 Gbps per Lane
  • Support LVDS (VESA format), resolution up to 1920 x 1080 via dual port
  • Support LVDS Spread-Spectrum clock to reduce EMI
  • Support AUX channel
  • Support HPD

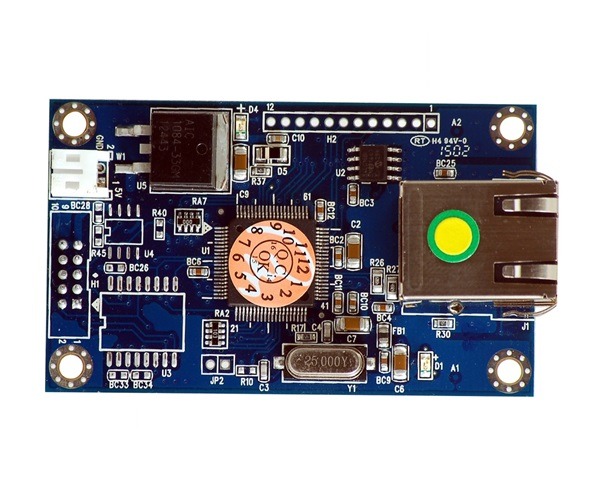

FR-E2Sxy
FR-E2Sxy
Ethernet to Serial Board
Ethernet to Uart/ RS485/ SPI
  • Small size, Low cost, and efficiency
  • Support serial device is able to connect a LAN/ WAN immediately without any hard - ware change
  • Power supply: DC 5V
  • Operating Temperature: -20°C to 80°C

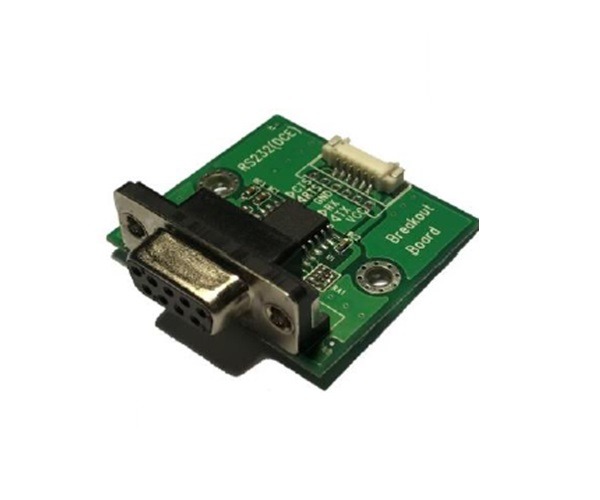

FR-DCE-W/D, FR-DTE-W/D
FR-DCE-W/D, FR-DTE-W/D
UART to RS232/422/485
UART convert to RS232
  • UART-TTL with 3.3V/ 5V tolerance input
  • RS232 provide 3-wire or 5-wire mode
  • RoHS Compliant

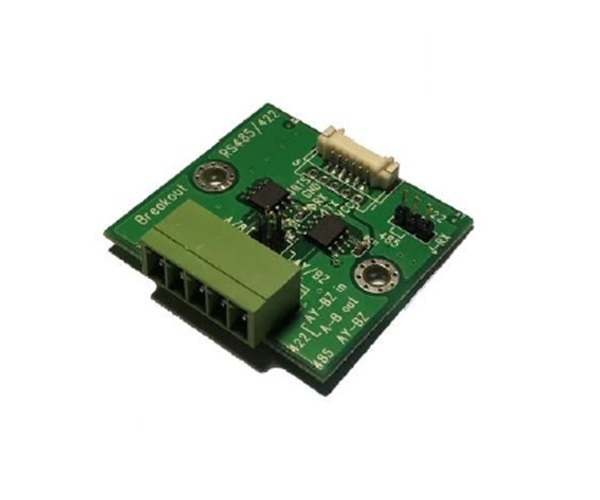

FR-48522-W/D
FR-48522-W/D
UART to RS232/422/485
UART convert to RS422/ RS485
  • UART-TTL with 3.3V/ 5V tolerance input
  • An optional 120 Ohm (Terminate Resistor) built on board
  • RoHS Compliant

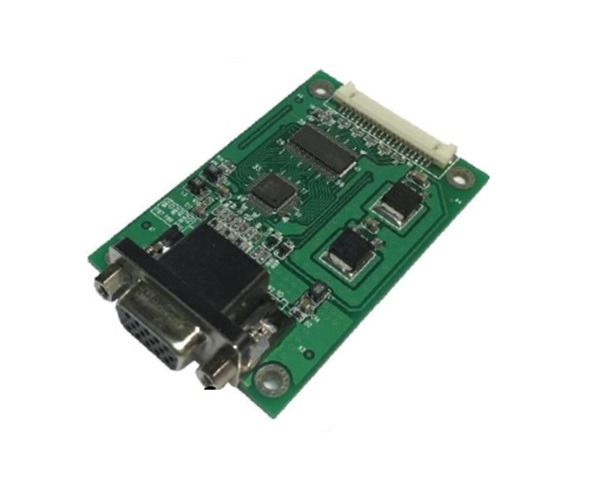

FR-LVDS-V/W
FR-LVDS-V/W
LVDS to DVI/VGA
LVDS TO VGA
  • Converting input signals to TMDS with non-sync regulation
  • VESA data format. (T3M&P for higher bit transmission)
  • LVDS data latch at falling edge of transmit clock frequency of max. 85MHz.
  • No EDID supported

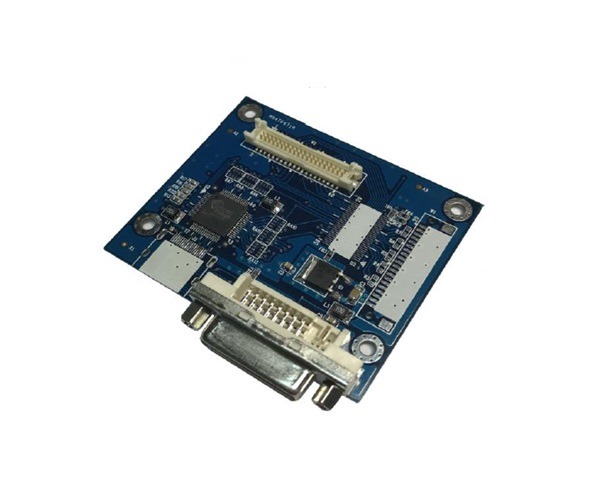

FR-TTL-D/H
FR-TTL-D/H
LVDS to DVI/VGA
TTL INPUT 18/ 24-BIT SIGNAL TO DVID OUTPUT
  • Converting input signals to TMDS with non-sync regulation
  • TTL-data latch at falling edge of pixel clock. (Max. TBD MHz)
  • No EDID/ HDCP suppported

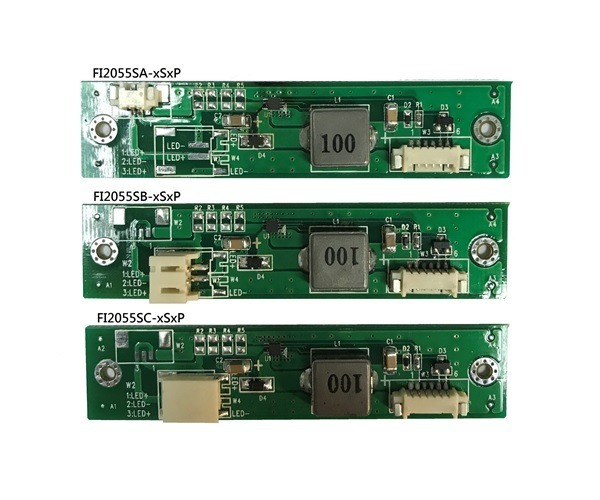

FI2055S (DC5V in)
FI2055S (DC5V in)
LED Driver Board
Single Voltage
  • DC 5V LED Driver Board
  • Support max 4w
  • Support max output current 400mA
  • Support max output voltage 35V

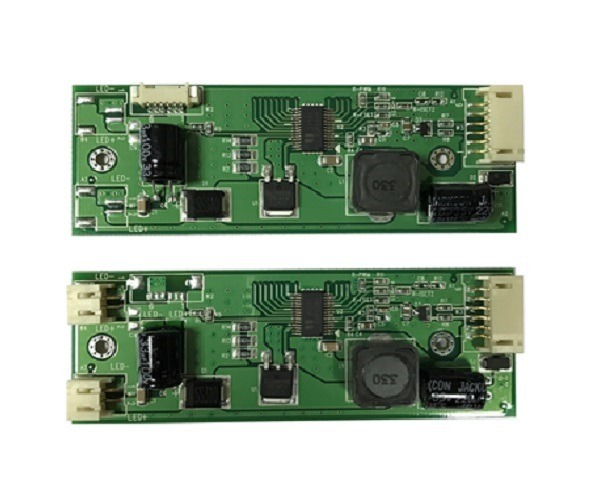

FI589W (DC12~24V in)
FI589W (DC12~24V in)
LED Driver Board
Wide Voltage
  • DC12~24V LED Driver Board
  • Support max 28w
  • Support max output current 720mA
  • Support max output voltage 64V
