Digital Signage Panel/Box

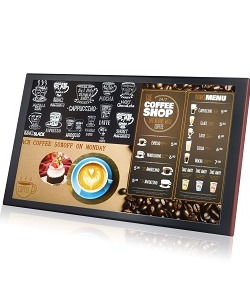

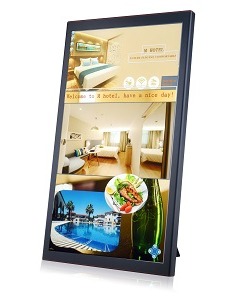

The 21.5 inch of Digital Signage Panel PC is designed with elegant wooden frame and slim outline. It is very suitable stand on counter, embedding on wall or hanging from the ceiling for an immediate selling and cross-promotional purchase information showing.

An available free software App(e.frame-host) is designed with intuitive UI operation and provided sample templates for various application circumstance. These free offers are helpful for beginners to build up an exquisite content & rich color in easily, quickly.

Based on the system have equipped GigE(LAN) and 2.4/5Ghz Wi-Fi function. The completed advertising contents can broadcast or update in a local network or from a remote Host-PC.

The DSP215 also can be setup to provide an extra WiFi-HUB function for a multi-services.

The suitable environments :
1. Coffee Shop, Restaurant
2. Wedding
3. Tourist Guide
4. Yacht
5. Museum
6. Exhibition

To receive more functional information about software App(e.frame-host),
Please download datasheet & User's Manual from the Technical Support.
Product Features
 Available free software Digital Signage App and sample templates for various of application circumstance
 Updating advertisements over LAN/WLAN/USB
 Provides stand-alone operation
 Advertising content scheduling
 Supports video formats: MPEG-4, AVI, RTSP
 Supports image formats: JPEG, BMP, PNG, GIF
 Classical black metal chassis
Processor Dual Cortex-A72 @ 2.0Ghz + Quad Cortex-A53 @ 1.5Ghz
GPU Integrated ARM Mali-T864, AFBC Supported
Memory 1GB LPDDR3L 1066 SDRAM (Optional 2GB, 4GB)
  • 8GB eMMC(Optional 16GB, 32GB)
  • Micro SD Card Slot (Max. 1 TB available)
  • 1 x USB 2.0, 1 x USB 3.0
Screen Size 21.5"
Resolution 1920 x 1080
Brightness 250 cd/m2
Contrast Ratio 3000:1
Aspect Ratio 16:9
View Angle 85/85/85/85
Touch Screen P-CAP Touch 10-Point multi-touch (E version only)
  • LAN, Ethernet: 1 x RJ45-10/100/1000 Mbps
  • WiFi + Bluetooth 4.1
Updating Method Via LAN / Wi-Fi / U-keyboard & mouse
PoE (Optional) Supports Power Device(PD): follows IEEE 802.3 at (25W)
Power Input DC 12V / PoE (Optional)
Power Consumption Max 12W @ 4x video showing simultaneously
Product Size ( L x W ) 300 mm x 520 mm
VESA Mount 200/100 x 100 mm
Chassis & Frame Pine, Oak nature wooden on two sides, Metal Black
Accessories Power Adapter, landscape/ portrait stand
DSP215 2D Drawing 下載
DSP215 Short Form 下載
e.frame User Manual V11(English) 下載
e.frame User Manual V1(Chinese) 下載
