MBICJC

Embedded Single Board Computer
The MBIJ19 is powered by Intel Celeron Family J1900 Quad Core.
It's an economical solution for most IoT applications. with Dual LAN, It could gather the data from other IoT Gateway and upload it via the second LAN.
Besides, MBIJ19 also supports WIFI/ BT and LTE for remote upload.
MBICJC
  • Product Features
  • Technical
Product Features
 Intel Celeron J1900 Quad Core CPU
 Support Dual LAN for IoT Solution
 Support WIFI/ BT, 4G LTE
 Various Expansion Port
Specification
Processor Intel Celeron J1900 Quad Core, 2GHZ
Memory 4GB 1600/1333MHz DDR3L (Up to 8GB)
Storage
  • 1 x mSATA 64GB SSD (Up to 128GB)
  • 1 x SATA 2.0 Port with power
BIOS 64Mb Flash ROM
Watch Dog Support
TMP Support TPM 2.0
OS
  • Windows 10 IoT
  • Ubuntu 20.04
  • Linux

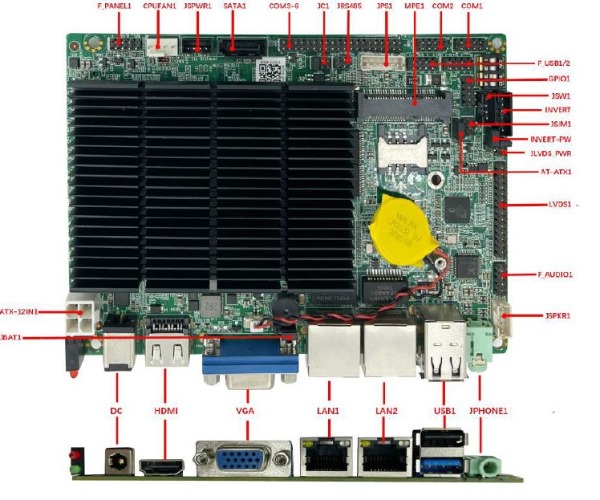

External I/O Port
  • 1 x USB 3.0 Type A
  • 1 x USB2.0 Type A
  • 2 x Intel I211 Giga LAN RJ45
  • 1 x VGA
  • 1 x HDMI
  • 1 x 12V Power Input, DC Jack
  • 1 x HDD LED, Power LED
  • 1 x Line-Out
Internal I/O Port
  • 1 x RTC Battery Connector
  • 1 x LVDS 2*15 pin wafer (eDP for Optional, choose one of two, LVDS by default)
  • 1 x LCD Panel Power Selection
  • 1 x LCD Backlight Control Connector 6 Pin
  • 1* Front Keypad Header 2*5Pin
  • 6* COM（COM2/COM3 Select RS485)
  • 4* USB 2.0 expansion header 2*5Pin
  • 1* Audio Header 2*5pin (Mic/Line-Out)
  • 1 x Speaker Header 1*4 Pin
  • 1 x Mini-PCIe Slot (for wifi or 4G LTE)
  • 1 x 2*5 Pin GPIO (GND、VCC、4 DI、4DO)
  • 1 x SIM Card Slot
  • 1* PS2 Header 1*6Pin
  • 1* HDD Power Header 1*4Pin
Power Input
  • 1 x 12V DC Jack
  • 1 x 9~36V DC 3-Pin Terminal Block (Optional)
Operating Temp. -20~60°C
Storage Temp. -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Dimension 146mm x 102mm
