FIBEWH00C

Edge AI Inference Embedded System
* Power Efficiency AI Edge System
* Intel 11th Gen Elkhart Lake J6412/ J6413/ X6413E processor
* Empowered by Hailo-8 M.2 AI module up to 26 TOPS
* Compact Fanless Design, 158 x 124.7 x 47.5 mm (W/ D/ H)
* Rich AI toolkits for runtime integration and model deployment
* 9~36V Wide Power Input
* Optional -20~60°C wide temperature
FIBEWH00C
  • Product Features
  • Technical
Product Features
 Power Efficiency AI Edge System
 Intel 11th Gen Elkhart Lake J6412/ J6413/ X6413E processor
 Empowered by Hailo-8 M.2 AI module up to 26 TOPS
 Compact Fanless Design, 158 x 124.7 x 47.5 mm (W/ D/ H)
 Rich AI toolkits for runtime integration and model deployment
 9~36V Wide Power Input
 Optional -20~60°C wide temperature
Specification
Chassis
  • Metal Cover + Casting Aluminum Sink
  • Dimensions (mm): 158 x 124.7 x 47.5 mm (W/ D/ H)
  • Color: Black
  • Fan-less
Processor Intel 11th Gen Elkhart Lake J6412/ J6413/ X6413E processor
Memory 2 x DDR4 SO-DIMM Max. 32GB
Storage
  • 1 x M.2 M-Key 2280(NVMe PCIe 3.0 x4/SATA3.0 Protocol) Storage Slot
  • 1 x SATA 3.0 Connector, 2-Pin Power
Video Output
  • 1 x HDMI 2.0, Support 4096x2160@60Hz
  • 1 x DP 2.0, Support 4096x2160@60Hz

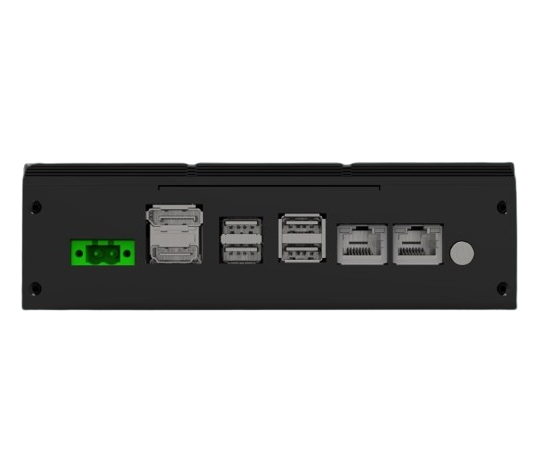

I/O Port
  • 1 x 2-Pin Terminal Block
  • 4 x USB 3.0
  • 2 x Giga LAN
  • 1 x RS232 COMport (Optional)
Expansion Port
  • 1 x M.2 E-Key (For Hailo-8 AI Module)
  • 1 x M.2 B-Key USB2.0/ USB3.0 Protocol Support 4G/5G Module
  • 1 x Micro SIM Card Slot
AI Accelerator Module Hailo-8 M.2 Interface, up to 26 TOPS
Operating System Operating System
Power
  • DC 9- 30W, 2-Pin Terminal Block
  • Consumption: Max. 27W (Motherboard: 20W + AI Module: 7W)
Mounting
  • Desk Mount
  • Din-Rail Mount
Reliability
  • Operating Temperature -10°C ~ 60°C with air flow
  • Storage Temperature -20°C ~ 70°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 1.35 Kg
  • Safety/EMC CE/FCC class-Ｂ compliant
