MBIELC

Embedded Single Board Computer
Intel Embedded Single Board Computer
The MBIELC is powered by Intel's 10th-generation Elkhart Lake J6412/ J6413/ X6413E processor.
It's an economical solution for most KIOSK, Gaming, Parcel Locker, or any Panel PC.
Its powerful and rich expansion slot could also support an AI module card.

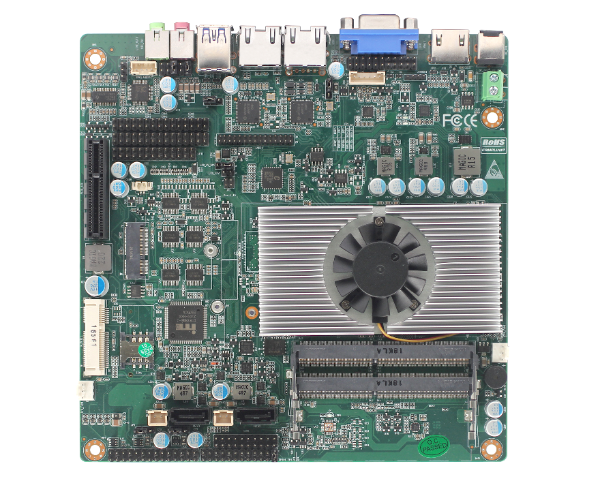

MBIELC

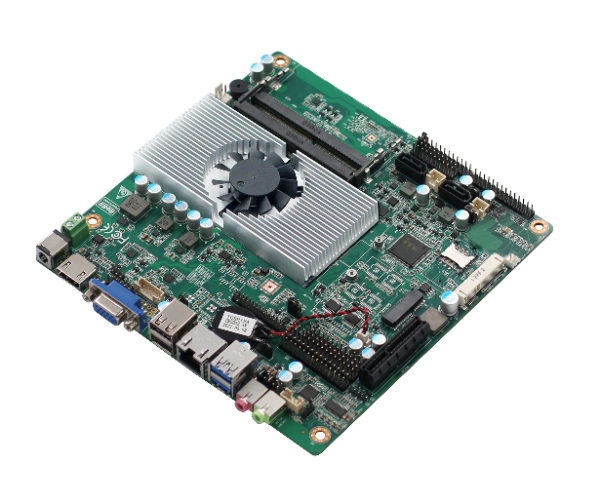

MBIELC
MBIELC
  • Product Features
  • Technical
Product Features
 Intel 11th Elkhart Lake J6412/ J6413/ X6413E processor
 2 x DDR 4 SODIMM, support upto 32GB
 HDMI 、 VGA 、 LVDS/EDP display
 2 x Intel I225 2.5G Lan (Optional for 1) TPM 2.0 Support
 TPM 2.0 Support
 Optional with FAN
Specification
Processor
  • Intel Celeron J6412 Quad Core 2.0G Hz upto 2.6G Hz
  • Intel Celeron J6413 Quad Core 1.8G Hz upto 3.0G Hz
  • Intel Atom X6413E Quad Core 1.5G Hz upto 3.0G Hz
Memory 2 x DDR 4 SODIMM, support upto 64GB
Storage
  • 1 x mSATA 64GB SSD, Support upto 256GB
  • 2 x SATA 3.0, 2-Pin SATA Power
BIOS EFI
Watch Dog support
TPM TPM 2.0 Support
OS
  • Win 10 IoT
  • Win 11
  • Linux
  • Ubuntu
  • Debian

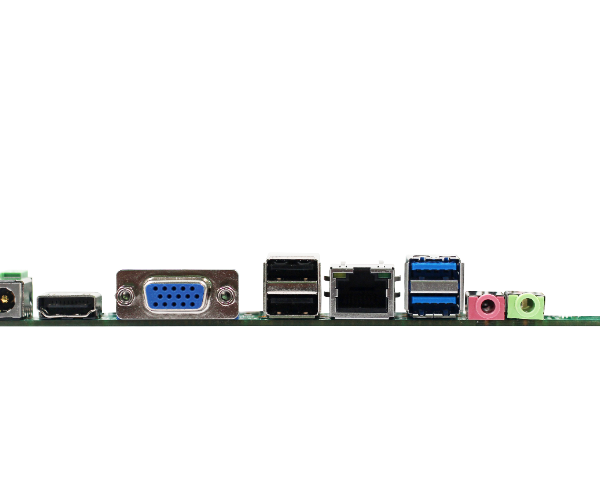

External I/O Port
  • 1 x 12V DC Jack
  • 1 x HDMI
  • 1 x VGA
  • 2 x Intel I225 2.5G LAN (Optionanl for 1)
  • 2 x USB 3.1 Type A (If select only 1 LAN, it will support an additional 2 x USB 2.0 Type A)
  • 1 x Line_Out
  • 1 x MIC_In
Internal I/O Port
  • 1 x DC 12V Input 2-Pin Pheonix Terminal Block (Optional 4-Pin ATX Connector)
  • 1 x M.2 PCIe 2230 for WiFi Module (Including PCIe and USB 2.0 Signal)
  • 1 x mPCIe Slot (Including PCIe and USB 2.0 Signal)
  • 1 x PCIe_4X
  • 1 x LVDS Pin Header, 2 x 15-Pin (2.0 mm)
  • 4 x USB 2.0 Pin Header, 2 x 5-Pin (2.0 mm) (If M.2 Slot and mPCIe slot do not use USB, it can support up to 6 x USB 2.0 Pin Header)
  • 1 x COMport Pin Header, 2 x 5-Pin (2.54 mm), support 2 x RS422/ 485, 4 x RS232
  • 8 x GPIO, 2 x 5-Pin Header (2.54 mm)
  • 1 x Speaker Wafer, 4-Pin
  • 1 x Front Panel, 2 x 5-Pin (2.54 mm)
  • 1 x SPDIF Pin Header, 1 x 3-Pin (2.54 mm)
  • 1 x CPU FAN Wafer, 1 x 3-Pin (2.54 mm)
  • 1 x System FAN Wafer, 1 x 3-Pin (2.54 mm)
  • 1 x PS/2 Pin Header, 2 x 4-Pin (2.54 mm)
Power Input 12V DC Input (Optional 9~36V Input with an additional power board)
Operating Temp. -20℃ ~ +60℃, Humidity 0% ~ 90% non condensing
Storage Temp. -40℃ ~ +85℃, Humidity 0% ~ 90% non condensing
Dimension 170 x 170 mm
