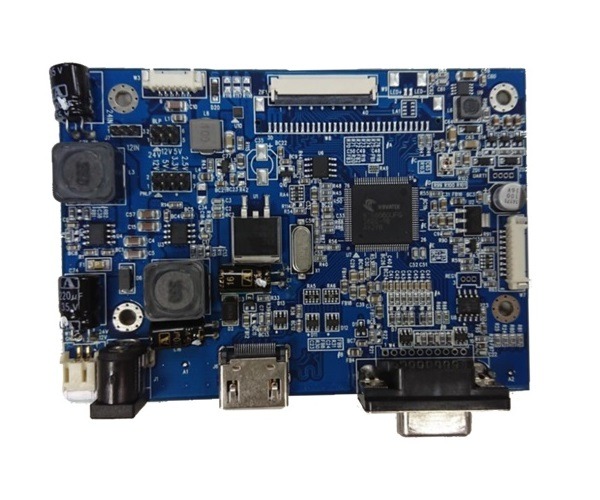

Product Features | |
Input: VGA, Max. 1920*1200 | |
Output: LVDS/ Vcom/ VGH/ VGL | |
Built-in LED backlight driver | |
Keypad OSD/ UART OSD | |
DC 12V/ 24V | |
Operation temperature 0℃ to 70℃ |
Specification | |
Acceptable Graphic input |
|
Panel Interface | LVDS 6/8bit, single/dual channel, Max. WUXGA |
Panel Resolution | Max. 1920*1200 (WUXGA) |
Panel Power | 2.5V/3.3V/5V/12V selectable by jumper PNLP |
Backlight Power | 5V/12V/24V selectable by jumper BLP |
Plug & Play | VESA DDC 2B |
OSD |
|
Power source | DC 12V/ 24V |
Power Consumption | 2.1W w/o Panel |
Operation temperature | -10℃ to 70℃ |
Dimension ( L x W) | 105.5mm x 75mm |
