FES-P215EA-EC

Industrial HMI Panel PCs
．The FES-P215EA-EC is engineered with an ultra-slim and compact aluminum frame, optimizing its capabilities for a low-power, fan-less system configuration.
．The FES-P215EA-EC is particularly well-suited for various applications in industrial transportation, infotainment sales, self-ordering machines (HMI), and television advertisement displays.

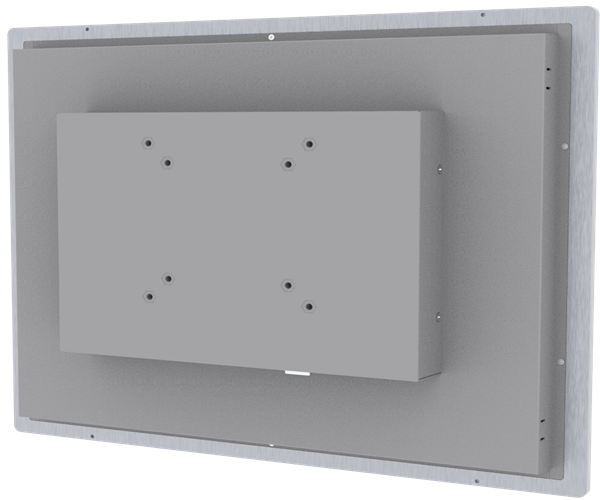

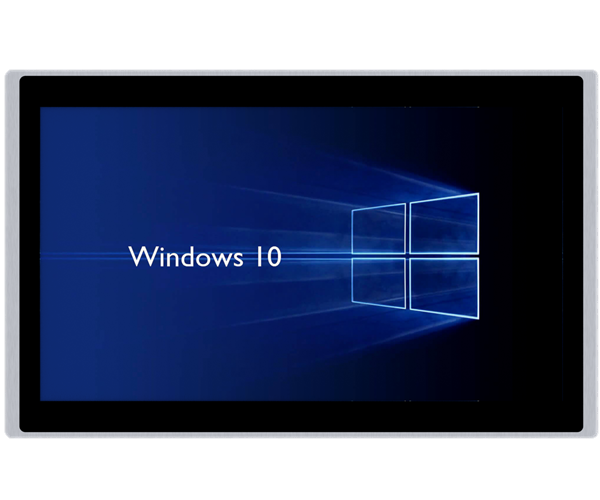

FES-P215EA-EC
FES-P215EA-EC
  • Product Features
  • Technical
Product Features
Chassis Case: Aluminum frame
TFT Panel: 21.5”, 1920 x 1080, 500 nit, View Angle 178/ 178
Touch Panel: PCAP Multi-Touch
Operating System: Windows 10 IoT/ Linux
Front IP65 Waterproof & Dustproof
Specification
Chassis
  • Aluminum Front Bezel + Metal Rear Cover
  • Fan-less
LCD Panel
  • 21.5"
  • 1920 x 1080
  • Brightness: 500 nits
  • Contrast Ratio: 1000
  • Support Color: 16.7M
  • Viewing Angle: 178/ 178
  • P-CAP Touch 10-Point Multi-touch, Air Bonding
Processor
  • Intel Elkhart Lake 11th J6412
  • Intel Elkhart Lake 11th X6413
Memory DDR4 SO-DIMM 4GB (Up to 32GB)
Storage SSD 64GB (Up to 1 TB)
Multimedia
  • 1 x HDMI
  • 1 x DP
I/O Interfaces
  • 4 x USB 3.0
  • 2 x Giga RJ45 LAN
  • 1 x 2-Pin Terminal Block DC 9~36V Power Input
  • 1 x RS232 COMport
  • 1 x Power Button
Wireless Communication (Option)
  • 4G LTE
  • WIFI + BT V4.1
OS (Pre-Install)
  • Windows 10 IoT
  • Linux
Power 2-Pin Terminal Block DC 9~36V Input
Mounting
  • VESA Mount (75 x 75 mm)
  • Panel Mount
Reliability
  • Operating Temperature -20°C ~ 60°C with air flow
  • Storage Temperature -20°C ~ 80°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 3.50 Kg
  • Safety/EMC CE/FCC class-A compliant
