FOP104E0-M6

Industrial HMI Panel PCs

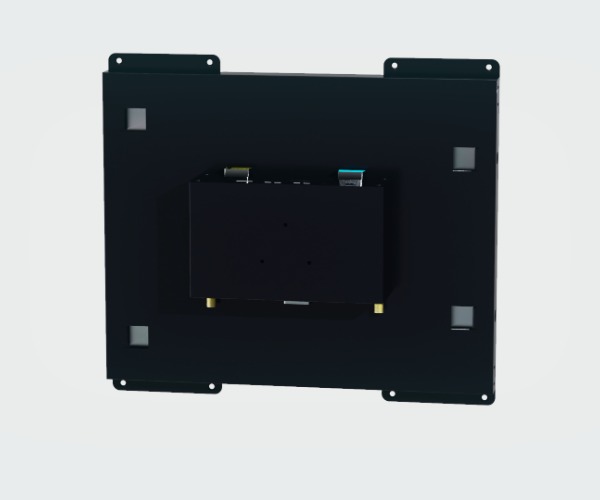

Chassis Case: Metal Open Frame
TFT Panel: 10.4”, 1024x768, 16.7M colors, (U/L/D/R): 85/85/85/85
Touch Panel: PCAP USB Interface
Operating System: Android7.1 /Debian8.0
Waterproof Rating: None
Mounting: VESA mounting, Clips mounting,Panel mounting
Power: 12V DC Power
FOP104E0-M6
FOP104E0-M6
FOP104E0-M6
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Open Frame
TFT Panel: 10.4”, 1024x768, 16.7M colors, (U/L/D/R): 85/85/85/85
Touch Panel: PCAP USB Interface
Operating System: Android7.1 /Debian8.0
Waterproof Rating: None
Mounting: VESA mounting, Clips mounting,Panel mounting
Power: 12V DC Power
Specification
Chassis
  • Metal Open Frame
  • Dimensions(mm) 254x224x58
  • Color SECC
  • Fanless
LCD Panel
  • 10.4"
  • 1024(RGB)x768
  • 225.5 cd/m² (typ.)
  • 85/85/85/85 Deg.
  • PCAP USB Interface
Memory 2GB DDR3-1066 SDRAM (Up to 4GB)
Storage 8GB eMMC (Up to 16GB)
OS
  • Android 6.0
  • Linux 4.1.15 (AMOS-820-QP SKU)
Display Interface 1.4 port, max. 1080P

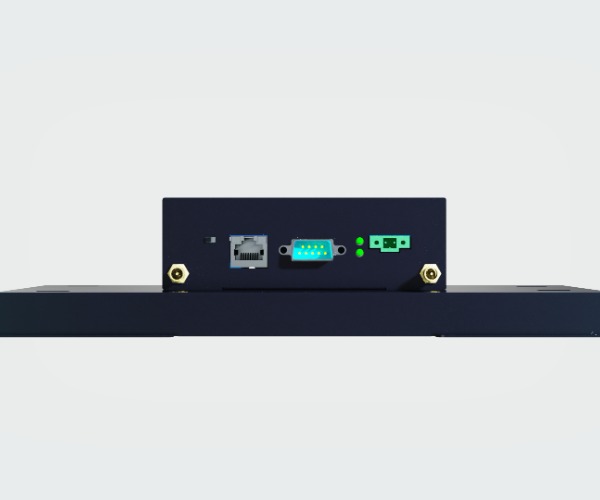

Front Panel I/O
  • 1 x 2-pole Terminal DC jack.
  • 1 x Power LED & WLAN/WPAN/WWAN LED (if Wi-Fi has installed)
  • 1 x COM1 port (supports 5-wire TX/RX/RTS/CTS) RS232 DTE mode/RS485/RS422
  • 1 x Gigabit Ethernet port (supports optional IEEE802.3 af type 1)
  • 1 x Micro SD/eMMC boot select switch
  • 2 x Antenna holes for 5G/Wi-Fi
Rear Panel I/O
  • 1 x Reset button
  • 1 x HDMI® port
  • 1 x Mini USB 2.0 type B port support OTG
  • 3 x USB 2.0 type A ports
  • 1 x Micro SD/SDHC card slot
  • 1 x CAN/Debug port (CAN Protocol specification Version 2.0 B through a cable)
  • 1 x DIO port supports eight GPIOs
  • 1 x Audio jack for Line-out(default)/Earphone-out(optional)
  • 1 x Audio jack for Mic-in(default)/Line-in(optional)
Power 1 x 2-pin Terminal Block 12V DC-in
Downloads
FOP104E0-M6 2D Drawing Download
