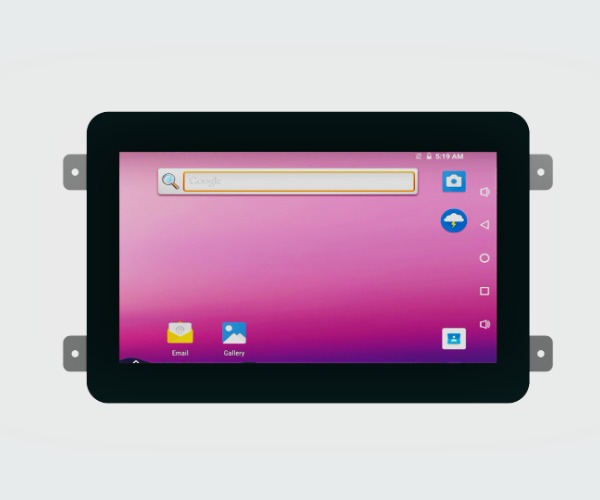

FBD070E1

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.


Ordering Information:
VGA/DVI :FBD070E1-N0(Board Type:FBD4662LV)
VGA/DVI/RS232 OSD:FBD070E1-N2(Board Type:FBD4662LV)
VGA/HDMI :FBD070E1-N6(Board Type:FBD4666LV)

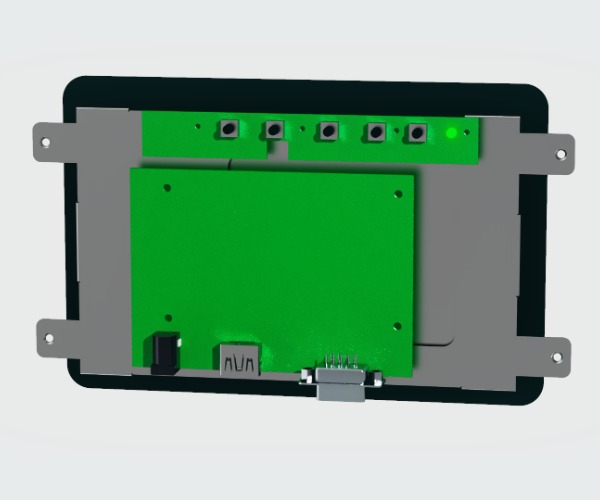

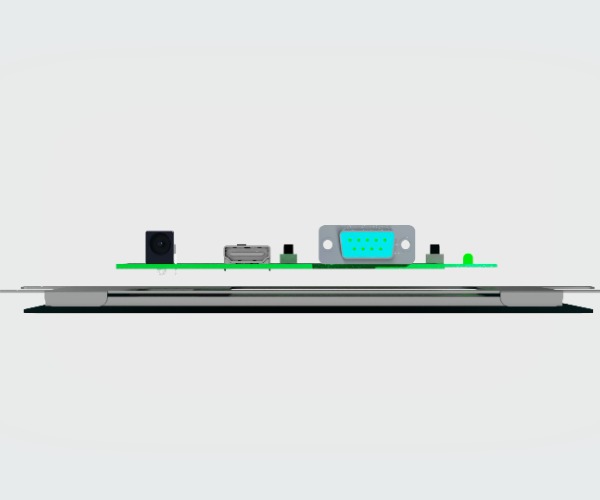

FBD070E1
FBD070E1
FBD070E1
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Bracket
TFT Panel: 7", 1024x600, 200 nit, 16.7M Colors, (U/L/D/R): 80/80/80/80
Touch Panel: PCAP USB Interface
AD Board:FBD4662/FBD4666(Optional)
Input: VGA/DVI/ HDMI/(Optional)
Mounting: Panel Mounting
Power: DC 12V
Specification
Chassis
  • Metal Bracket
  • Dimensions(mm) 202.34*119.8*26.33
  • Color SECC
  • Fanless
LCD Panel
  • 7"
  • 1024(RGB) x 600
  • 200 cd/m² (typ.)
  • 80/80/80/80 Deg.
  • PCAP Touch (USB Interface)
Plug & Play VESA DDC2B
I/O Interfaces(Optional)
  • 1xVGA , 1xDVI
  • 1xVGA , 1xDVI ,1xRS232 OSD
  • 1xVGA , 1XHDMI
OSD(Optional)
  • keypad: 4_OSD_IO_key + power key
  • UART OSD
Power source DC 12V (2.0mm DC jack)
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FBD070E1 2D Drawing Download
