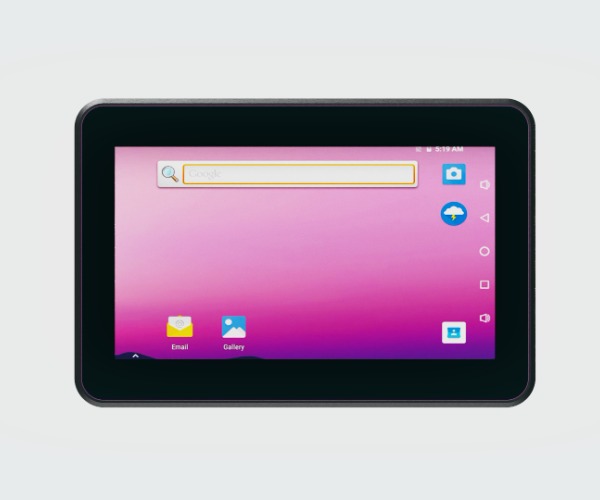

FES070E7-CJ

Industrial HMI Panel PCs

Panel: 7"1024x600 LCD,(Front IP65 waterproof)
Touch: PCAP USB Inertface
CPU:Intel® Celeron J1900/2.0G quad-core processor, compatible with Intel® Baytrail-I/M/D series
Memory: 8GB DDR3
Power: DC12V Input(2.0mm DC Jack)
Operating System: Windows
Mounting: VESA Mounting、Panel Mounting、Clips Mounting

Product Features
Technical

Product Features
Panel: 7"1024x600 LCD,(Front IP65 waterproof)
Touch: PCAP USB Inertface
CPU:Intel® Celeron J1900/2.0G quad-core processor, compatible with Intel® Baytrail-I/M/D series
Memory: 4GB DDR3(Up to 8GB)
Power: DC12V Input(2.0mm DC Jack)
Operating System: Windows
Mounting: VESA Mounting、Panel Mounting、Clips Mounting

Specification
Chassis	ABS Plastic Bezel , Metal Rear Chassis Dimensions(mm) 188.6 x 126.5 x 44.7 Color Black Fanless
LCD Panel	7" 1024(RGB) x 600 450 cd/m² (typ.) 800:1(typ.) 80/80/80/80 Deg. Project Capacitive
Processor	Intel® Celeron J1900/2.0G quad-core processor, compatible with Intel® Baytrail-I/M/D series
Memory	DDR3L-4GB(up to 8GB)
Storage	64GB SSD 1x SATA 2.0

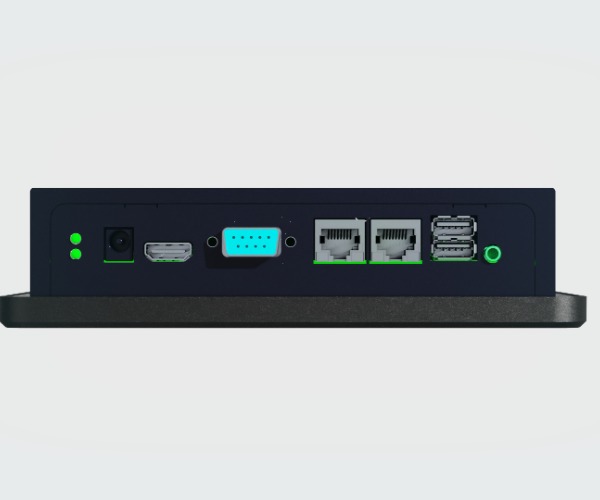

I/O Interfaces	1x 2.0mm DC Jack 1xHDMI 1.4 1xVGA 1x USB3.0，1xUSB2.0 2x Gbt RJ45 1x Line out 1xSATA/Power LED
Power	DC12V(2.0mm DC Jack)
OS	Windows7/Windows10 Linux

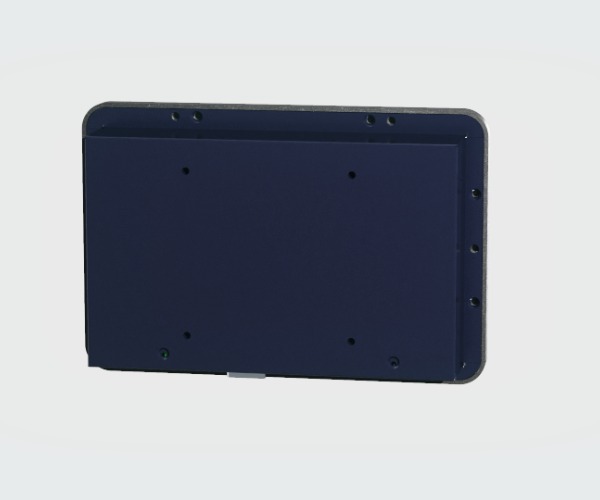

Mounting	VESA Mounting Panel Mounting

Downloads
FES070E7-CJ 2D Drawing	Download
