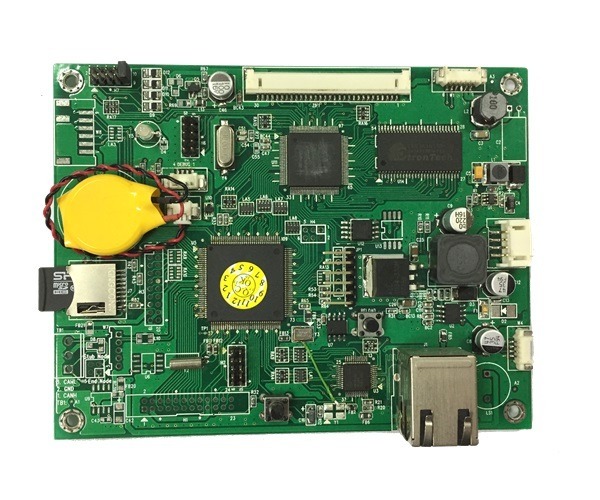

FBM4-K60512
Embedded Single Board Computer
FES-M4 is designed with Cortex-M4 core and Multi-useful peripherals to benefit engineer
to develop quickly in an industrial product application. Especially in a HMI application.
The advantages of the FES-M4:
>> Ultra low power and designed for harsh industrial environment.
>> A completed library of MQX RTOS for peripherals control.
>> Available APIs for panel control.(refer to document FES-M4_APIs_Note)
>> Providing Max. Resolution up to 1366x768.
All of above advantages are low cost, low profile, and flexible usage
to develop quickly in an industrial product application. Especially in a HMI application.
The advantages of the FES-M4:
>> Ultra low power and designed for harsh industrial environment.
>> A completed library of MQX RTOS for peripherals control.
>> Available APIs for panel control.(refer to document FES-M4_APIs_Note)
>> Providing Max. Resolution up to 1366x768.
All of above advantages are low cost, low profile, and flexible usage
- Product Features
- Technical
| Product Features | |
| Kinetis MK60DN512VLQ10 @ 100MHz Cortex- M4. | |
| FlashROM 512KB/ SRAM 128KB | |
| MQX RTOS | |
| Auto-upload user's App via SD card |
| Specification | |
| Processor | Kinetis MK60DN512VLQ10 @ 100MHz. Cortex- M4 is based on ARMv7 Architecture |
| OS | MQX RTOS |
| FlashROM | 512KB |
| SRAM | 128KB |
| Storage Memory | SD card, EEprom(AT24C16) |
| App download | Automatically upload from SD card or RS232 |
| Display | Flex-Bus be able to equip with the FG4335xy-mn board for various panel size from 3.5" ~ 7" |
| Touch | 4-wired resistive type |
| SPI | SPI1 and SPI2 port |
| LAN | High performance RMII 10/100Mbps Ethernet controller |
| Communication | RS232, CAN BUS |
| USB | USB 2.0 device x 1 (FBM4-K60512D) |
| Feature Port1 | A/D converter channel, DAC converter channel, PWM channel |
| Feature Port2 | I2C port, GPIO |
| Power Supply | single power DC 5V input |
| Operating Temperature | -20°C to 80°C |
