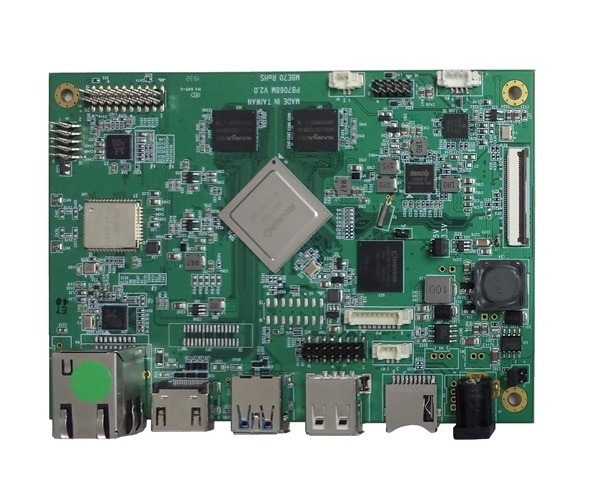

MBE70
Embedded Single Board Computer
The MBE70 Series of motherboard integrated various useful peripheral circuit that provides a completed connectivity for a wide variety of industrial automation, transportation applications, besides that the high performance media-processor also especially for Infotainment/ Entertainment, HMI applications.
The heart of the motherboard MBE70 is the Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz processor which provides complete platform for project evaluation and solution feasibility testing that decreases the time to market and lowers initial cost.
The heart of the motherboard MBE70 is the Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz processor which provides complete platform for project evaluation and solution feasibility testing that decreases the time to market and lowers initial cost.
- Product Features
- Technical
| Product Features | |
| A small 126.5mm x 90mm compact design | |
| RK3399 Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz | |
| 2GB DDR3-1066 SDRAM/ 8GB eMMC | |
| GigE x1, 2.4G/ 5G Wi-Fi x1 | |
| eDP: 1.3, 2/4 lane (2.7Gbps per lane) , Res. up to 2560x1600p @60fps | |
| Support OS Android 7.1, Linux Debian 9.0 | |
| Power Over Ethernet ( Optional) |
| Specification | |
| Processor | Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz |
| Multi-Media Processor |
|
| Memory | 2GB DDR3-1066 SDRAM (Up to 4GB) |
| Storage |
|
| OS |
|
| Display Interface |
|
| External I/O |
|
| Internal I/O |
|
| Operating Temperature |
|
| Operating Humidity | 10% to 90% (non-condensing) |
| Cooling System | Fanless design |
| Dimension ( L x W) | 126.5mm x 90mm |
| Power Input | 12V |
| PoE (Optional) | Supports Power Device(PD): follows IEEE 802.3at ( 25W) |
