DSB710

Digital Signage Panel/Box

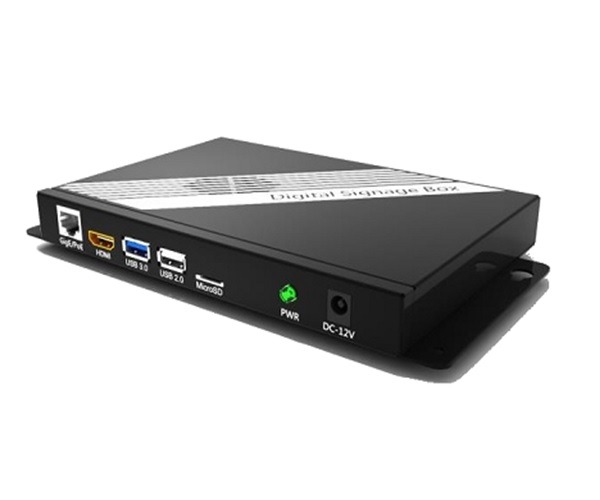

DSB710 is designed with classical metal chassis. It is very suitable for large TV display that can attractive visitor's attention.

An available free software App(e.frame-host) is designed with intuitive UI operation and provided sample templates for various application circumstance. These free offers are helpful for beginners to build up an exquisite content & rich color in easily, quickly.

Based on the system have equipped GigE(LAN) and 2.4/5Ghz Wi-Fi function. The completed advertising contents can broadcast or update in a local network or from a remote Host-PC.

The DSB710 also can be setup to provide an extra WiFi-HUB function for a multi-services.

The suitable environments :
1. Coffee Shop, Restaurant
2. Wedding
3. Tourist Guide
4. Yacht
5. Museum
6. Exhibition

To receive more functional information about software App(e.frame-host),
Please download datasheet & User's Manual from the Technical Support.
Product Features
Provides connect port to large TV display
Available free software Digital Signage App and sample templates for various application circumstance
Updating advertisements over LAN/WLAN/USB
Provides stand-alone operation
Advertising content scheduling
Supports video formats: MPEG-4, AVI, RTSP
Supports image formats: JPEG, BMP, PNG, GIF
Classical black metal chassis
Specification
Processor Dual Cortex-A72 @ 2.0Ghz + Quad Cortex-A53 @ 1.5Ghz
GPU Integrated ARM Mail-T864, AFBC supported
Memory 2GB DDR3-1066 SDRAM on board (Optional 4GB)
Storage
  • 8GB eMMC(Optional 16GB, 32GB)
  • Micro SD Card Slot (Max. 1 TB available)
  • 1 x USB 2.0, 1 x USB 3.0
Network
  • LAN, Ethernet: 1 x RJ45-10/100/1000 Mbps
  • WiFi + Bluetooth 4.1
Updating Method Via LAN / Wi-Fi / U-keyboard & mouse
IR (Optional) IR remote control, Stereo Jack Ø 3.5, 38KHz, NEC IR protocol
PoE (Optional) Supports Power Device(PD): follows IEEE 802.3 at (25W)
Power Input DC 12V / PoE (Optional)
Power Consumption Max 7w @ 4x video showing simultaneously
Cooling System Fanless design
Product Size ( L x W x H) 207.8 mm x 118.2 mm x 25 mm
VESA Mount 192.8 x 75 mm
Chassis & Frame Metal Black
Accessories Power Adapter
Downloads
DSB710 Short Form Download
e.frame User Manual V11 (English) Download
e.frame User Manual V1 (Chinese) Download
