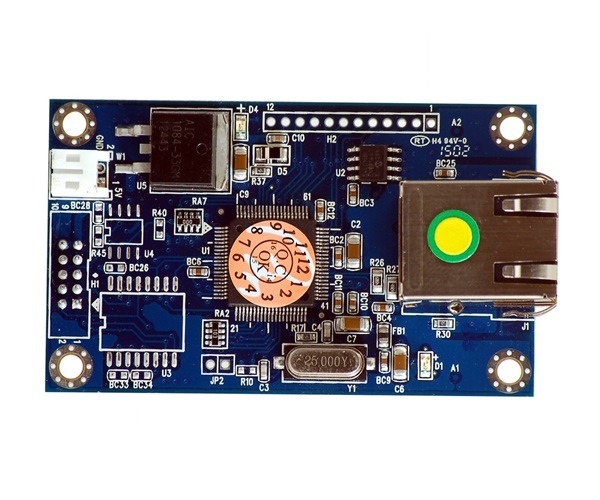

FR-E2Sxy
Peripheral Board
The E2S enables the serial target device to have an Ethernet function. Therefore, the
serial target device is able to connect a LAN/ WAN immediately without any hardware change.
The E2S is able to translate the protocol from TCP/IP packet to a kind of serial data
stream just likes RS-232, RS-485, UART-TTL or SPI depends on the different E2S model.
On the other hand, E2S is also to translate the data stream from a serial to TCP/IP packet.
It provides an easier way to connect Ethernet by DHCP client or DNS client. Besides, a
customized web page can configure E2S for an adaptive setting.
serial target device is able to connect a LAN/ WAN immediately without any hardware change.
The E2S is able to translate the protocol from TCP/IP packet to a kind of serial data
stream just likes RS-232, RS-485, UART-TTL or SPI depends on the different E2S model.
On the other hand, E2S is also to translate the data stream from a serial to TCP/IP packet.
It provides an easier way to connect Ethernet by DHCP client or DNS client. Besides, a
customized web page can configure E2S for an adaptive setting.
- Product Features
- Technical
| Product Features | |
| Small size, Low cost, and efficiency | |
| Support serial device is able to connect a LAN/ WAN immediately without any hard - ware change | |
| Power supply: DC 5V | |
| Operating Temperature: -20°C to 80°C |
| Specification | |
| Ethernet Interface |
|
| Uart/ RS485/ RS232-TTL options: |
|
| SPI-TTL options: |
|
| Software Support | Remote Configure over embedded Web Page with password |
| Power supply | DC 5V |
| Dimensions ( L x W x H) | 67mm x 40mm x 19.5mm. |
| Operating Temperature |
|
| Ordering Part number | FR-E2Sxy |
| x |
|
| y |
|
| Downloads | |
| FR-E2Sxy User Manual | Download |
