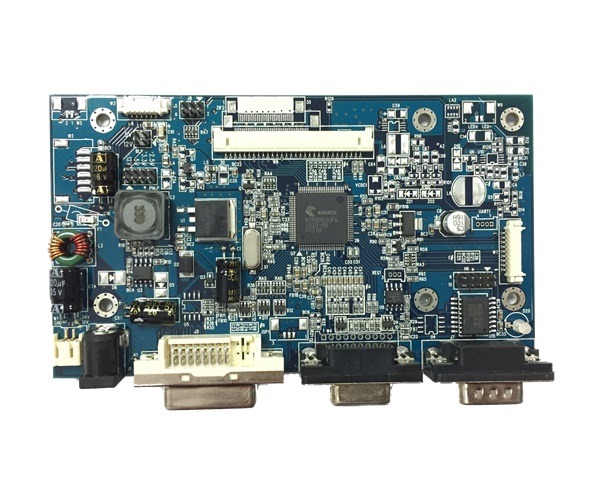

FBD4662LV

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
5. HMI..etc.
Product Features
Input VGA/ DVI, Max. 1920*1200
Output: LVDS/ Vcom/ VGH/ VGL
Built-in LED backlight driver
Keypad OSD/ RS232 OSD
DC 12V/ 24V
Operation temperature 0℃ to 70℃
Specification
Acceptable Graphic input
Panel Interface
  • LVDS 6/8bit, single/dual channel on W8 port
  • LVDS 6/8BIT, single channel on ZIF40 port
  • LVDS 6/8bit, single channel on ZIF30 port
Panel Resolution Max. 1920*1200 (WUXGA)
Panel Power 2.5V/3.3V/5V/12V selectable by jumper PNLP
Backlight Power 5V/12V selectable by jumper BLP
OSD
  • Keypad: 4_OSD_IO_key + power key
  • RS232 OSD with cascade usage
Plug & Play VESA DDC2Bi/2B+/Ci
Power source DC 12V/ 24V
Power Consumption Standby Mode : 0.24W (w/o TFT panel) Continue Mode: 2.4W (w/o TFT panel)
Operation temperature 0℃ to 70℃
Dimension ( L x W) 130mm x 75mm
Downloads
FBD4662LV Datasheet Download
FBD4662LV Short Form Download
