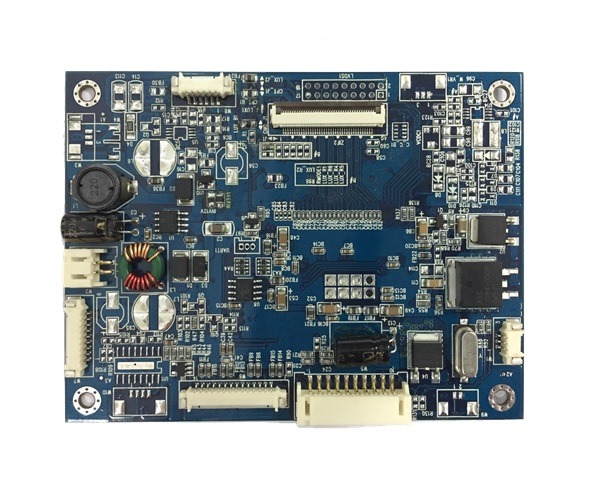

FBA1260D41

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
5. HMI..etc.
Product Features
Can Supports 6.5"~32" Panel
Input: VGA/ CVBS/ audio AMP( Optional), Max. 1280*1024
Output: TTL/ LVDS
Built-in LED backlight driver
Keypad OSD
DC 12V/ 24V
Operation temperature 0℃ to 70℃
Specification
Available panel I/F
  • Supported TTL_18Bit/24Bit(Max) output for panels
  • Supported single LVDS_18Bit/24Bit(Max) output for panels
PC Mode
  • Max 1280*1024@60Hz
  • Min CGA @ Hor:15.7KHz, Ver: 60Hz
Video Mode
  • NTSC, PAL, SECAM
  • Channel CVBS1/S-Video. (Selectable)
  • Channel CVBS2
  • Channel CVBS3 for CCD input
Plug & Play VESA_DDC2B2.0
Panel supported Various TFT panels size from 5.7” ~ 12.1”
Video decoder High quality adaptive 2D comb filter for both NTSC and PAL
LED driver(BLU) Offer Max power consumption to 6W
Audio w/Amp Suitable for 2W speaker with 4 Ohm
OSD keypad: 4_OSD_IO_key + power key
Power source DC 12V/ 24V
Operation temperature 0℃ to 70℃
Dimension ( L x W) 91mm x 76.9mm
Downloads
FBA1260D41 Datasheet Download
FBA1260D41 Short Form Download
