FES4335R1

Industrial Display Solution

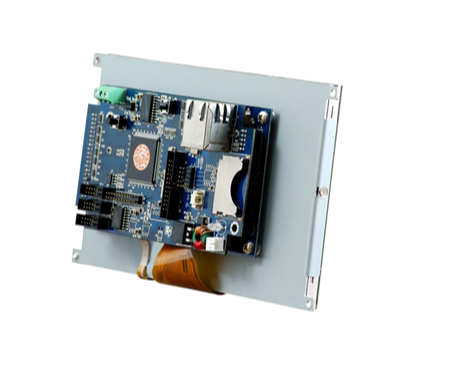

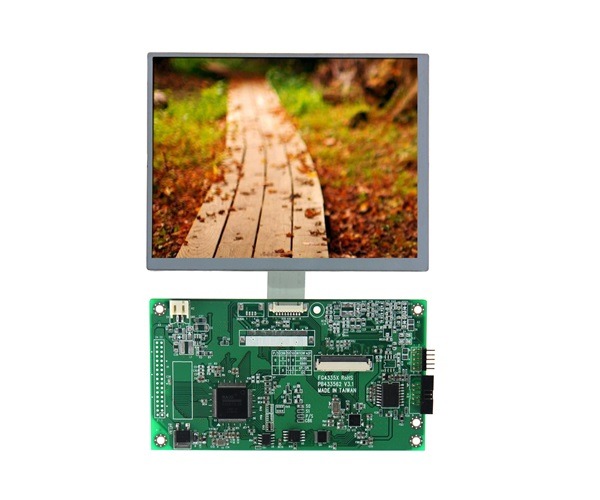

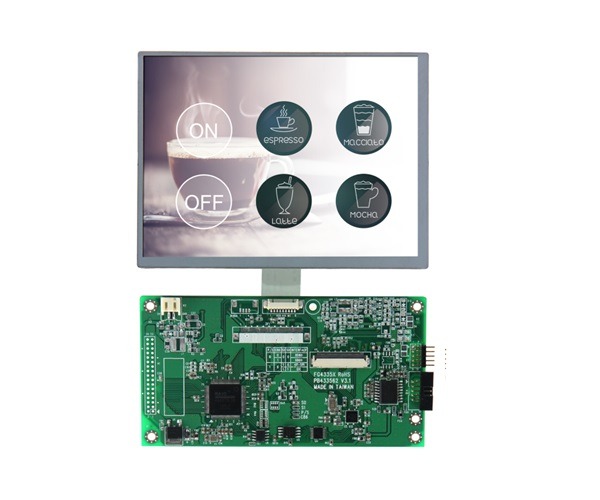

FES4335R1is a low cost, high efficiency and smart of TFT-LCD display control module which can provide characters or 2D graphics application within an embedded 768KB of display RAM.
FES4335R1 offers serial interface (RS232) to establish a hardware communication with an external simple MCU (as like 8051 etc.), and providing the “Commands Table” for graphical effect calling and execution.
According to the “Commands Table” of graphics APIs, the external MCU only need to transmit the corresponding command code with parameters into FES4335R1 over serial interface. The command decoder inside of FES4335R1 would go to implement the graphics task by automatically.

Operation & Application:
1. Mono Graphic display
2. Handheld device
3. Data collection node
4. Elevator
5. Vending machine
Product Features
3.5"/ 4.3" / 5.6"/ 7.0" TFT
Resistive Touch Panel
Interface RS232, RS422 ( Optional), Uart ( Optional)
image memory: 64Mb-flash ROM, up to 128Mb
Available Command Table
Specification
Serial Interface RS232 ( 115200/N/8/1)
Memory SPI serial memory with Max. 128Mb for image data storage
Touch Resistive Touch Panel
External/ Internal I/O Provide GPI x4, GPO x4. (w/ 5v tolerance)
The available catalog listing of Commands Table
  • System Control.(Touch,Brightness,Gpio…etc.)
  • Memory Rd/Wr.(FlashROM, D-buffer…etc.)
  • Graphic Cursor. (Standard, User’s )
  • Character Font display.(Standard, User’s Font)
  • Geometry Drawing
Operation temperature -10°C to 60°C
Power supply DC 5V
Ordering number
FES4335R1-35T 3.5", 320x240, typ. 800nits
FES4335R1-43T 4.3", 480x272, typ. 800nits
FES4335R1-56T 5.6", 800x480, typ. 850nits
FES4335R1-70T 7.0", 800x480, typ. 850nits
Downloads
FES4335R1 Flyer Download
FES4335R1-35T Reference Manual Download
FES4335R1-43T Reference Manual Download
FES4335R1-56T Reference Manual Download
FES4335R1-70T Reference Manual Download
