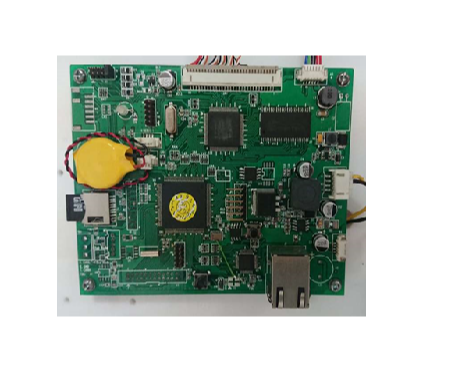

FBM4-K60512
Embedded System & Platform
[{"value":"Kinetis MK60DN512VLQ10 @ 100MHz Cortex- M4 is based on ARMv7Architecture"},{"value":"FlashROM 512KB\/ SRAM 128KB"},{"value":"Non-OS or MQX RTOS"}]
- Product Features
- Technical
| Product Features | |
| Specification | |
| Processor | Kinetis MK60DN512VLQ10 @ 100MHz. Cortex- M4 is based on ARMv7Architecture. |
| OS | MQX RTOS |
| FlashROM | 512KB |
| SRAM | 128KB |
| Storage Memory | SD card, EEprom(AT24C16) |
| App download | Automatically down-load from SD or RS232 |
| Display | Flex-Bus be able to equip with the FG4335xy-mn board for various panel size from 3.5" ~ 7" |
| Touch | 4-wired resistive type |
| SPI | SPI1 and SPI2 port |
| LAN | High performance RMII 10/100Mbps Ethernet controller |
| Communication | RS232, CAN BUS |
| USB | USB 2.0 device x 1 (FBM4-K60512D) |
| Feature Port1 | A/D converter channel, DAC converter channel, PWM channel |
| Feature Port2 | I2C port, GPIO |
| Down Load I/F | JTAG interface (for factory use only) |
| Power Supply | single power DC 5V input |
| Operating Temperature | -20℃ to 80℃ |
