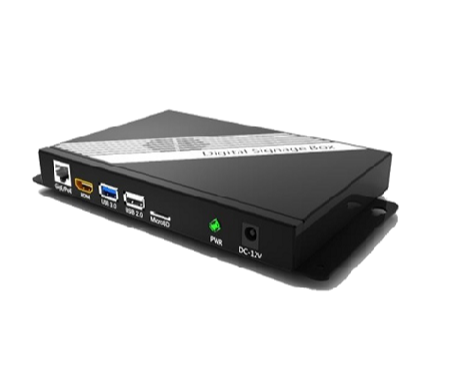

FES710

Embedded System & Platform
[{"value":"High Performance RK3399 Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz\tAndroid"},{"value":"HDMI\u00ae V2.0, 4Kx2K @60fps, HDCP2.x"},{"value":"Multi Display(HDMI with LVDS, HDMI with eDP)"},{"value":"8GB of eMMC memory ( Optional 16 GB)"},{"value":"2GB DDR3-1066 SDRAM onboard (Optional 4GB)"},{"value":"Android 7.1, Linux Debian 9.0(Optional)"},{"value":"Power Over Ethernet ( Optional)"}]
FES710
  • Product Features
  • Technical
Product Features
Specification
Processor Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz
Multi-Media Processor ARM Mail-T860MP4 (GPU), AFBC supported
Multi-Media Processor Provides OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
Multi-Media Processor Video Decoder: H.264/H.265, 10bit, up to 4Kx2K@60fps, VP9, 8bit, up to 4Kx2K@60fps, MPEG-4/MPEG-2/VP8 up to 1080p@60fps
Multi-Media Processor Video Encoder: H.264/MVC/VP8 encoders by 1080p@30fps
Memory 2GB DDR3-1066 SDRAM onboard (Optional 4GB)
Storage 8GB of eMMC memory ( Optional 16 GB)/ Micro SD
OS Android 7.1, Linux(Debian 9.0)
Display HDMI
Resolution 4Kx2K @60fps, HDCP2.x
Ethernet 1 x RJ45-10/100/1000 Mbps
USB Port 1 x USB 3.0(OTG) Type A& 4 x USB 2.0 Type A
SD Slot 1 x Micro SD/SDHC card slot
Power Jack 1 x Power Jack DC12V/ DC24V
PoE Supports PoE (Optional), Power Device(PD): follows IEEE 802.3at (25W) (option)
WIFI / BT WLAN, 802.11 (a/b/g/n/ac, 2Tx2R) + Bluetooth (4.1 LE)
Audio Audio Combo Header, (Mic_in,Line_out)
Comport RS232 Debug port
Operating Temperature Commercial version: 0℃ to 60℃
Operating Humidity 10% to 90% (non-condensing)
Cooling System Fanless design
Dimension ( L x W x H) 143mm x 74mm x 60mm (w/o antenna)
