FOD170E0

Industrial Display Solution
Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.

Ordering Information:
*With Touch
VGA/DVI :FOD170E0-N0(Board Type:FBD4660LV)
VGA/HDMI:FOD170E0-N6(Board Type:FBD4666LV)
VGA/HDMI/DVI:FOD170E0-OS(Board Type:FBDC-KC46)
VGA/CVBS:FOD170E0-R0(Board Type:FBD1260LV)

*Without Touch
VGA/DVI :FOD170N0-N0(Board Type:FBD4660LV)
VGA/HDMI:FOD170N0-N6(Board Type:FBD4666LV)
VGA/HDMI/DVI:FOD170N0-OS(Board Type:FBDC-KC46)
VGA/CVBS:FOD170N0-R0(Board Type:FBD1260LV)

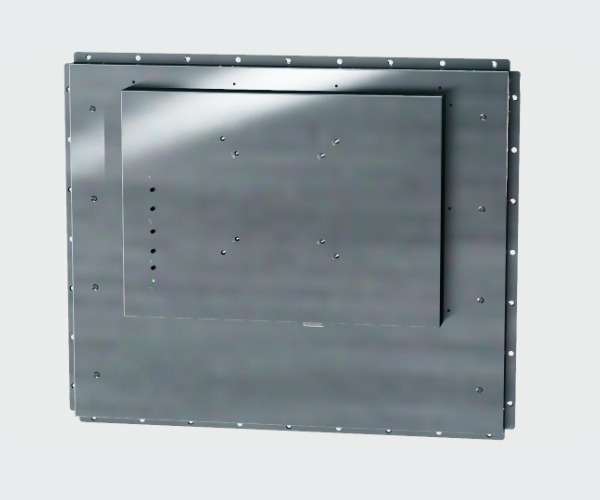

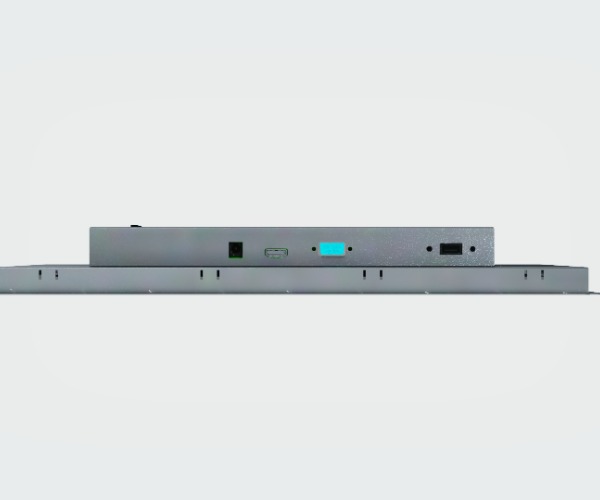

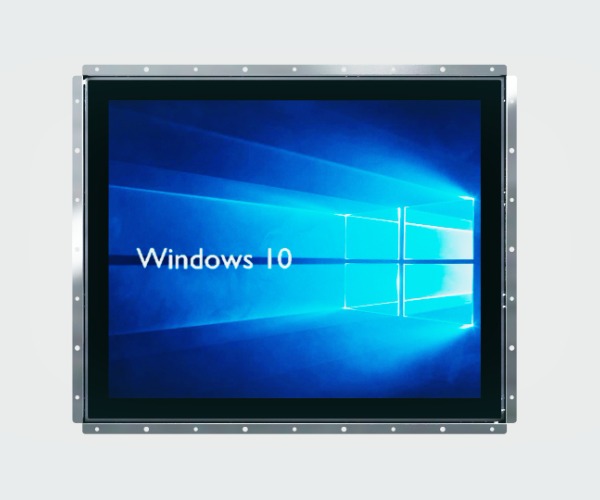

FOD170E0
FOD170E0
FOD170E0
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Open Frame
TFT Panel:17" 1280x1024 16.7M Colors (U/L/D/R): 85/85/80/80
Touch Panel: PCAP Multi-Touch, G/G Type, Hardness > 6H
AD Board:FBD4660/FBD4666/FBDC-KC46/FBD1260(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)
Mounting:Panel Mounting/VESA Mounting/Clips Mounting
Power: DC 12V
Specification
Chassis
  • Metal Open Frame
  • Dimensions(mm) 405x337x46
  • Color SECC
  • Fanless
LCD Panel
  • 17"
  • 1280x1024
  • 85/85/80/80 Deg
  • P-CAP Touch 10-Point
Plug & Play VESA DDC 2B
I/O Interfaces(Optional)
  • 1xVGA , 1xDVI
  • 1xVGA ,1xHDMI
  • 1xVGA，1xDVI，HDMI
  • 1xVGA，1xCVBS
OSD(Optional)
  • keypad: 4_OSD_IO_key + power key
  • UART OSD
Power source DC 12V (2.0mm DC jack)
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FOD170E0 2D Drawing Download
