FOD121E0

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.


Ordering Information:
*With Touch
VGA/DVI :FOD121E0-N0(Board Type:FBD4660LV)
VGA/HDMI :FOD121E0-N6(Board Type:FBD4666LV)
VGA/CVBS :FOD121E0-R0(Board Type:FBD1260)
VGA/DVI/HDMI :FOD121E0-OS(Board Type:FBDC-KC46)

*Without Touch
VGA/DVI :FOD121N0-N0(Board Type:FBD4660LV)
VGA/HDMI :FOD121N0-N6(Board Type:FBD4666LV)
VGA/CVBS :FOD121N0-R0(Board Type:FBD1260)
VGA/DVI/HDMI :FOD121N0-OS(Board Type:FBDC-KC46)

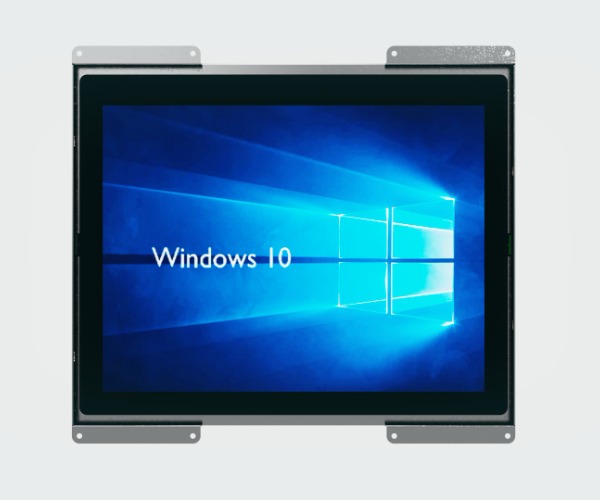

FOD121E0
FOD121E0
FOD121E0
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Open Frame
12.1" 1024x768 16.7M Colors (U/L/D/R): 89/89/89/89
Touch Panel: PCAP Touch
AD Board:FBD4660/FBD4666/FBD1260/FBDC-KC46(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)

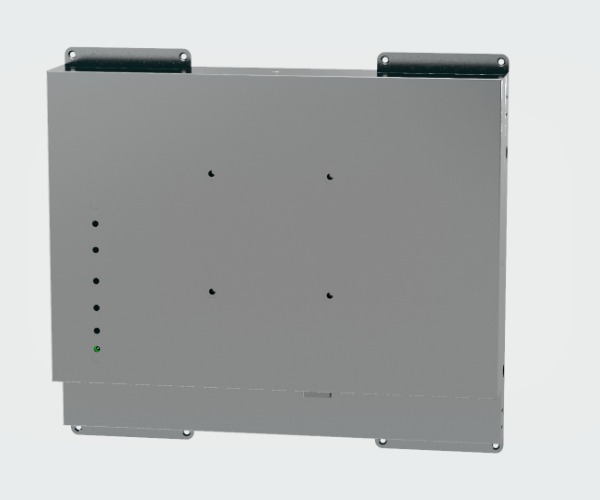

Mounting:Panel Mounting/VESA Mounting
Power: DC 12V
Specification
Chassis
  • Metal Open Frame
  • Dimensions(mm) 286.5x257x46
  • Color SECC
  • Fanless
LCD Panel
  • 12.1"
  • 1024x768
  • 89/89/89/89 Deg.
  • PCAP USB Interface
Plug & Play VESA DDC 2B

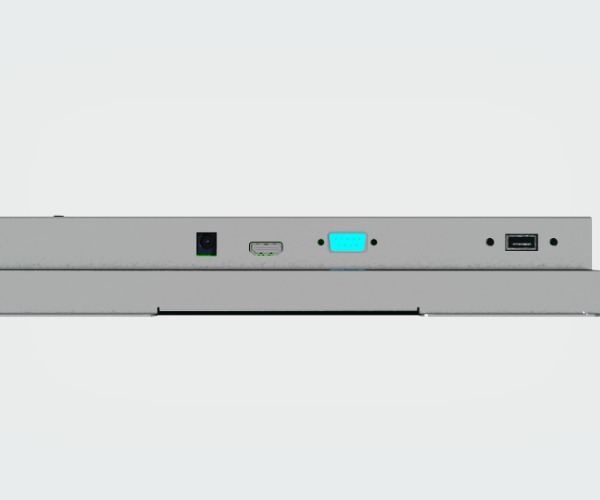

I/O Interfaces(Optional)
  • 1xVGA , 1xDVI
  • 1xVGA , 1XHDMI
  • 1xVGA , 1xCVBS
  • 1xVGA , 1xDVI , 1xHDMI
OSD(Optional)
  • keypad: 4_OSD_IO_key + power key
  • UART OSD
Power source DC 12V (2.0mm DC jack)
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FOD121E0 2D Drawing Download
