FOP170E0

Industrial HMI Panel PCs
17” 1280x1024 LCD
Designed with Open frame
PCAP, 10 Points Multi-Touch
802.3at Type2, PoE+
Panel mounting , VESA mounting
Operating System: Android 7.1/ Debian 9.0

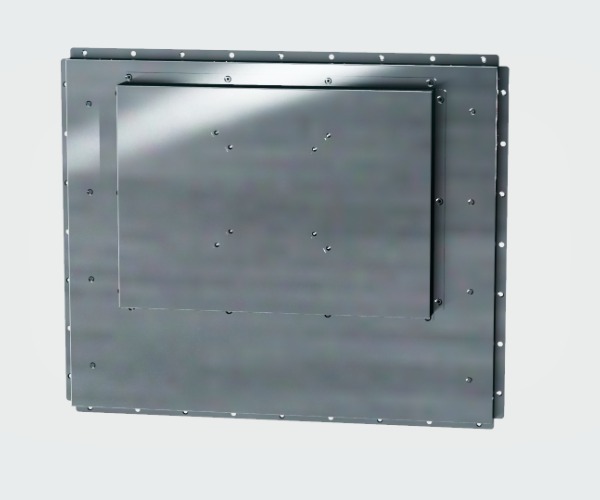

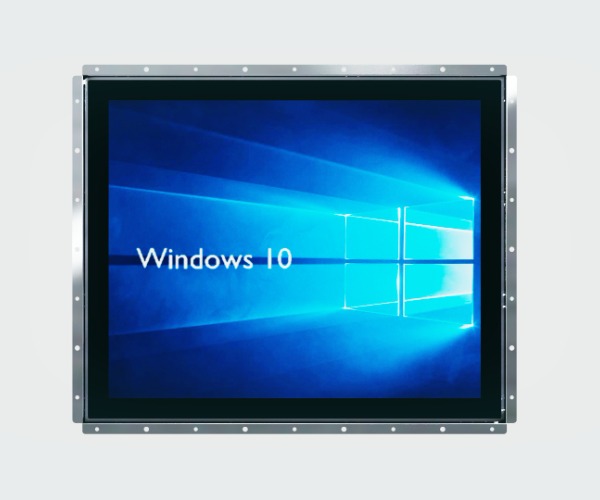

FOP170E0
FOP170E0
FOP170E0
  • Product Features
  • Technical
Product Features
Chassis Case:Metal Open Frame
TFT Panel: 17”,1280x1024, 16.7M colors, (U/L/D/R): 85/85/80/80
Touch Panel: PCAP Multi-Touch, G/G Type, Hardness > 6H
Operating System: Android 7.1/ Debian 9.0
Mounting: VESA mounting/Panel mounting
Power: 802.3at Type2, PoE+
Specification
Chassis
  • 415.58 mm x 264.88 mm x 50 mm
  • Color SECC
  • Fanless
LCD Panel
  • 17"
  • 1280x1024
  • 85/85/80/80 Deg
  • P-CAP Touch 10-Point
Processor (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory 2GB LPDDR3-1866 (Up to 4GB)
Storage
  • 16GB eMMC
  • 1 x Micro SD/SDHC slot (Up to 1TB)
Display 1 x Type A
Multimedia None

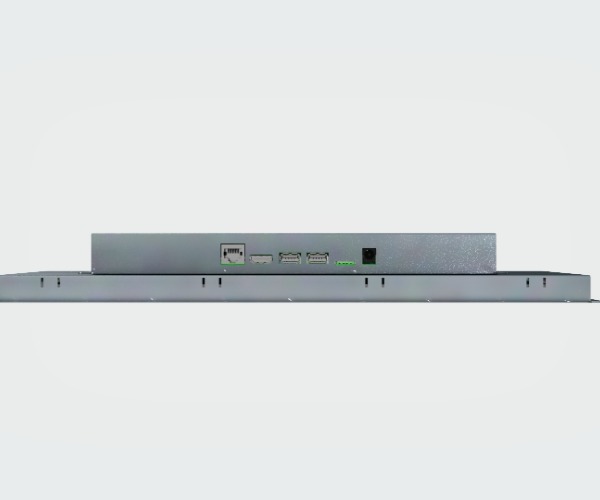

I/O Interfaces
  • 1 x GigE RJ45 w/ 802.3 at Type2 “PoE+”
  • 1 x USB 3.2 Gen 1 (5Gb/s) Type A-OTG
  • 1 x USB 2.0 Type A
Wireless Communication (Option)
  • WIFI + BT V4.1
  • 4G LTE module
LED & Button (Option)
  • 1 x Power LED, 1 x BT LED, 1 x Wi-Fi LED
  • 1 x Reset Tact Switch
OS
  • Android 7.1/8.0
  • Linux Debian 9.0
  • Watch Dog Timer: Support
Power
  • Input: DC 12V
  • Consumption: Typ. 11w
Mounting
  • VESA Mounting (mm): 75 x 75
  • Panel Mounting
Reliability
  • Operating Temperature -10°C ~ 50°C with air flow
  • Storage Temperature -20°C ~ 60°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 1.35 Kg
  • Safety/EMC CE/FCC class-A compliant
Downloads
FOP170E0 2D Drawing Download
