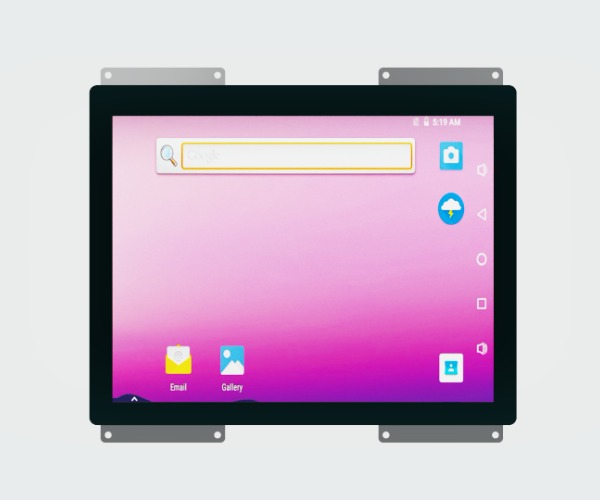

FBD121E1

Industrial Display Solution

Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.

Ordering Information:
VGA/DVI :FBD121E1-N0(Board Type:FBD4660LV)
VGA/HDMI :FBD121E1-N6(Board Type:FBD4666LV)
VGA/CVBS :FBD121E1-R0(Board Type:FBD1260)
VGA/DVI/HDMI :FBD121E1-OS(Board Type:FBDC-KC46)

Product Features
Technical

Product Features

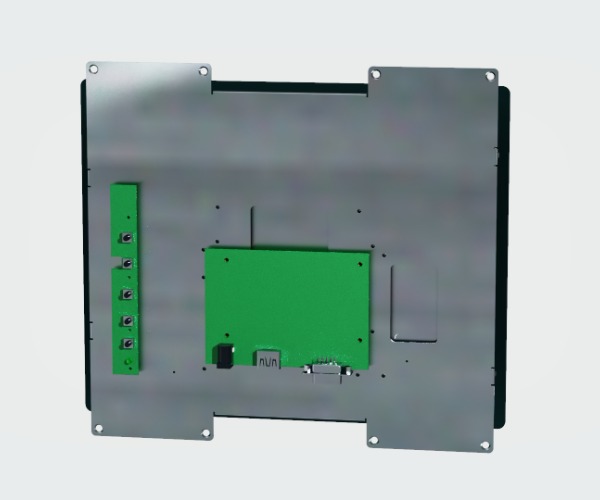

Chassis Case: Metal Bracket
12.1" 1024x768 16.7M Colors (U/L/D/R): 89/89/89/89
Touch Panel: USB Interface
AD Board:FBD4660/FBD4666/FBD1260/FBDC-KC46(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)
Mounting:Panel Mounting/VESA Mounting/Clips Mounting
Power: DC 12V

Specification
Chassis	Metal Bracket Dimensions(mm):276.5x220x35.15 Color SECC Fanless
LCD Panel	12.1" 1024x768 89/89/89/89 Deg. Touch: USB Interface
Plug & Play	VESA DDC 2B

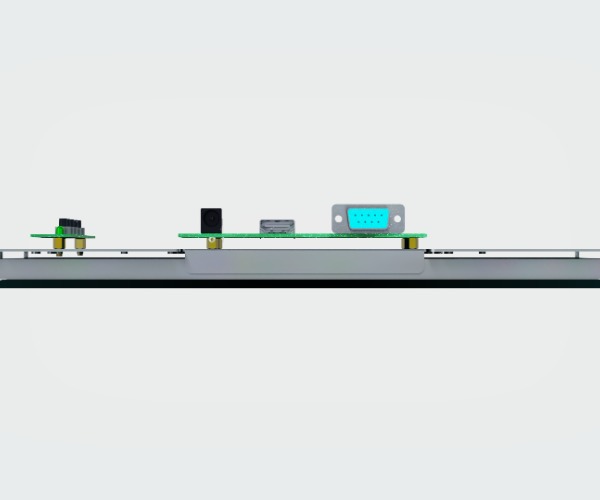

I/O Interfaces(Optional)	1xVGA , 1xDVI 1xVGA , 1XHDMI 1xVGA , 1xCVBS 1xVGA , 1xDVI , 1xHDMI
OSD(Optional)	keypad: 4_OSD_IO_key + power key UART OSD
Power source	DC 12V (2.0mm DC jack)
Power Consumption	2.1W w/o Panel
Operation temperature	-10℃ to 70℃

Downloads
FBD121E1 2D Drawing	Download
