Industrial Display Solution

Home    Products    Industrial Display Solution    FAD104E9

FAD104E9

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.


Ordering Information:
VGA/DVI :FAD104E7-N0(Board Type:FBD4660LV)
VGA/HDMI:FAD104E7-N6(Board Type:FBD4666LV)
VGA/DVI/HDMI:FAD104E7-OS(Board Type:KC46)
VGA/CVBS:FAD104E7-R0(Board Type:FBD1260LV)

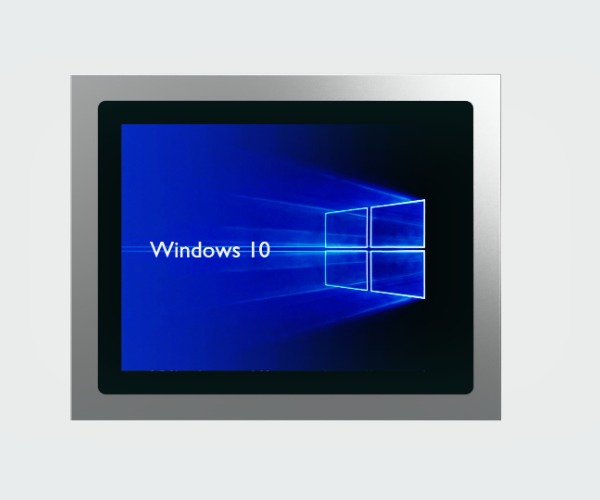

FAD104E9
FAD104E9
FAD104E9
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Frame
10.4" 1280x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel: PCAP USB Interface
AD Board:FBD4660/FBD4666/KC46/FBD1260(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)

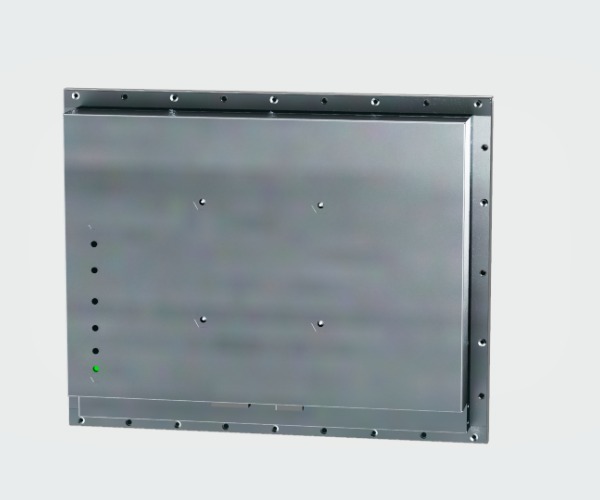

Mounting:Panel Mounting/VESA Mounting/Clips Mounting
Power: DC 12V
Specification
Chassis
  • Metal Frame
  • Dimensions(mm)278x224x52
  • Color SECC
  • Fanless
LCD Panel
  • 10.4"
  • 1024(RGB)x768
  • 225.5 cd/m² (typ.)
  • 85/85/85/85 Deg.
  • PCAP USB Interface
Plug & Play VESA DDC 2B

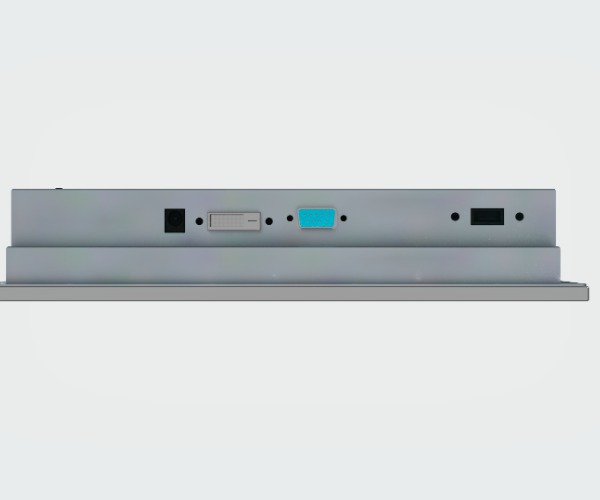

I/O Interfaces(Optional)
  • 1xVGA，1XDVI
  • 1xVGA，1xHDMI
  • 1xVGA，1xDVI，1xHDMI
  • 1xVGA，1xCVBS
OSD
  • keypad: 4_OSD_IO_key + power key
Power source DC 12V (2.0mm DC jack)
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FAD104E9 2D Drawing Download
