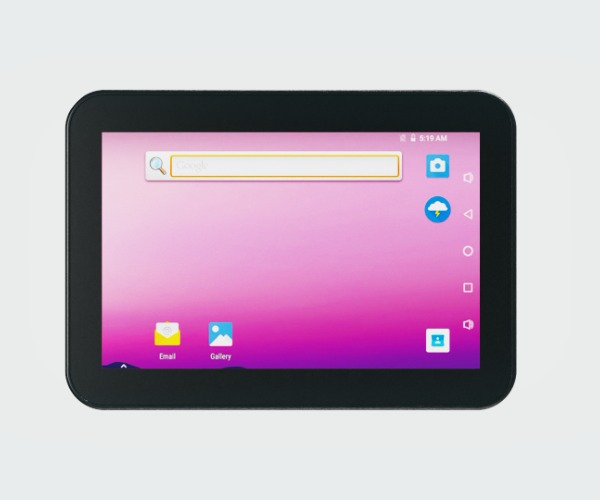

FAD101E7

Industrial Display Solution

Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.

Ordering Information:
VGA/DVI :FAD101E1-N0(Board Type:FBD4662LV)
VGA/DVI/RS232 OSD:FAD101E1-N2(Board Type:FBD4662LV)
VGA/HDMI :FAD101E1-N6(Board Type:FBD4666LV)

Product Features
Technical

Product Features
Chassis Case: Metal with Plastic Frame
10.1" 1280x800 16.7M Colors (U/L/D/R): 80/80/80/80
Touch Panel: PCAP USB Interface
AD Board:FBD4662/FBD4666(Optional)
Input: VGA/DVI/ HDMI(Optional)

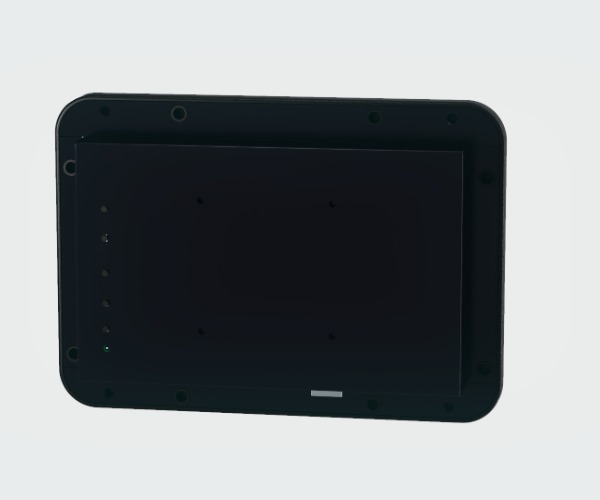

Mounting:Panel Mounting/VESA Mounting/Clips Mounting
Power: DC 12V

Specification
Chassis	ABS plastic Bezel，Metal rear Dimensions(mm) 260.42x184.92x43 Color Black Fanless
LCD Panel	10.1" 1280 X 800 330 cd/m² (typ.) 80/80/80/80 Deg. PCAP Touch
Plug & Play	VESA DDC 2B

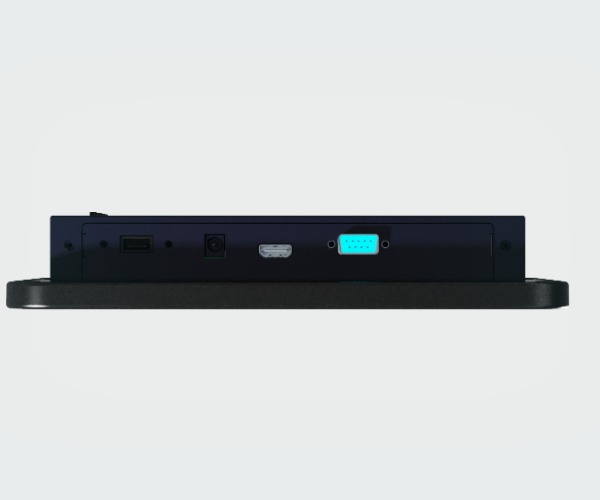

I/O Interfaces(Optional)	1xVGA , 1xDVI 1xVGA , 1xDVI ,1xRS232 OSD 1xVGA , 1XHDMI
OSD(Optional)	keypad: 4_OSD_IO_key + power key UART OSD
Power source	DC 12V (2.0mm DC jack)
Power Consumption	2.1W w/o Panel
Operation temperature	-10℃ to 70℃

Downloads
FAD101E7 2D Drawing	Download
