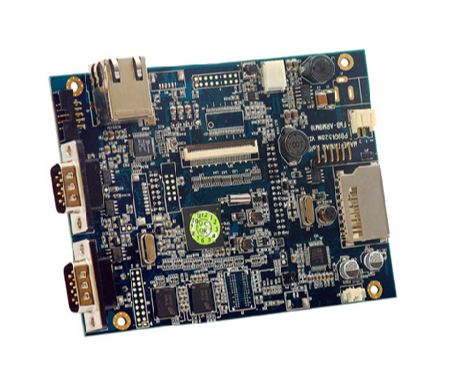

FES91W
Embedded System & Platform
[{"value":"Atmel AT91SAM9M10 @400MHz"},{"value":"32 bit RISC architecture ARM926EJ core"},{"value":"128MB, DDR2 memory \/ 2 Gbit NAND Flash memory"},{"value":"OS: WinCE6.0"}]
- Product Features
- Technical
| Product Features | |
| Specification | |
| Processor | Atmel AT91SAM9M10 @400MHz, 32 bit RISC architecture ARM926EJ core |
| Memory | 64MB or 128MB, DDR2 memory |
| Storage | 2 Gbit NAND Flash memory |
| OS | WinCE6.0 |
| Interface | TTL |
| LCD Panel | 7" & 10.4" |
| Ethernet | 1 x RJ45-10/100/1000 Mbps |
| USB Port | 1 x USB 2.0 device & 1 x USB 2.0 Host |
| SD Slot | 1 x Micro SD/SDHC card slot |
| Power Jack | 1 x Power Jack |
| WIFI | IEEE802.11 b/g/n, WiFi compliant (optional) |
| Audio | AC97 Codec, AMP inside for Ext. Stereo speaker 80hm/ 1W. |
| PCAP | PCAP touch panel wafer |
| Serial Port | RS232 |
| Extension Port1 | Including programmable 10x16 pin, Including 10 bit high speed A/D converter channel x 4, Including PWM channel x2 |
| Extension Port2 | Including SPI port x2, COM4 (3 wire RS232 only) |
| Operating Temperature | Industrial version :-20℃ to 80℃ |
| Operating Humidity | 10% to 90% (non-condensing) |
| Cooling System | Fanless design |
| Dimension ( L x W) | 127 mm x 90mm |
| Power Input | DC 9V~28V |
