FBP104E1

Industrial HMI Panel PCs
Chassis Case:Metal Bracket
TFT Panel:10.4" 1024x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel:PCAP USB Interface
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V

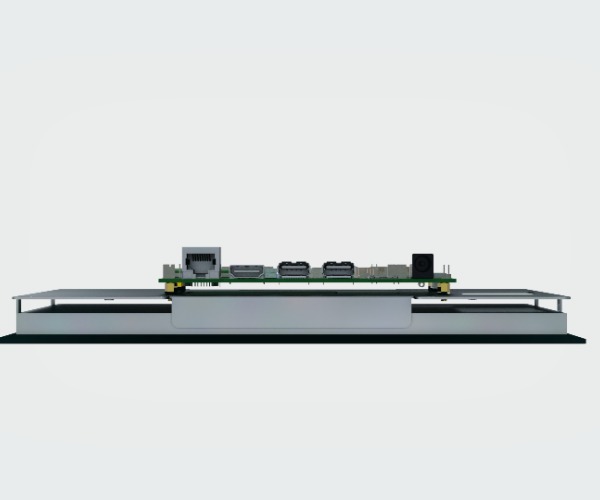

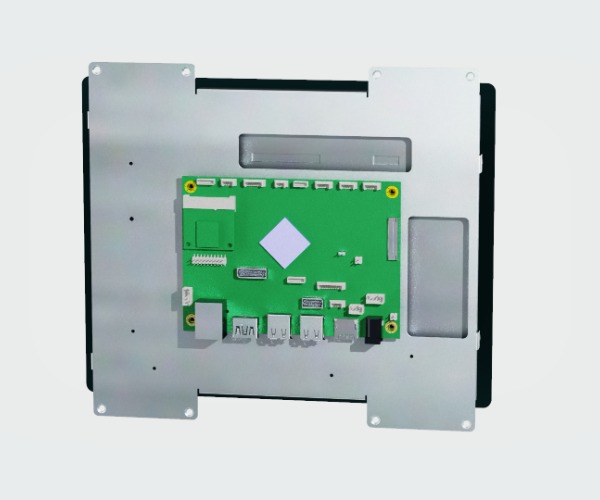

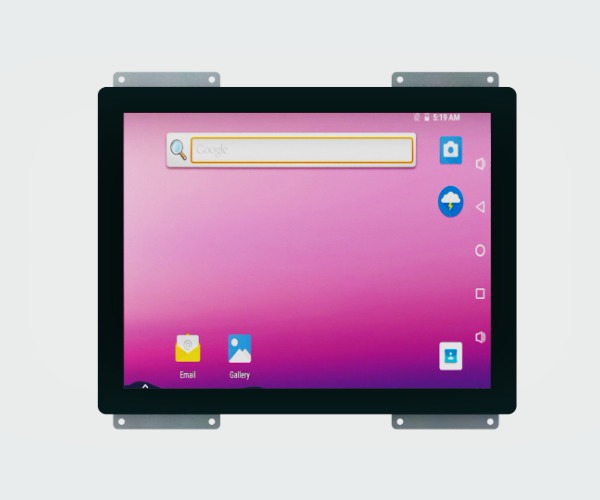

FBP104E1
FBP104E1
FBP104E1
  • Product Features
  • Technical
Product Features
Chassis Case:Metal Bracket
TFT Panel:10.4" 1024x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel:PCAP USB Interface
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V
Specification
Chassis
  • Metal Bracket
  • Dimensions(mm)241.8x209x39.59
  • Color SECC
  • Fanless
LCD Panel
  • 10.4"
  • 1024(RGB)x768
  • 225.5 cd/m² (typ.)
  • 85/85/85/85 Deg.
  • PCAP USB Interface
Processor (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory LPDDR3-1866-2GB (Up to 4GB)
Storage
  • eMMC-16GB
  • 1 x Micro SD/SDHC slot (Up to 1TB)
I/O Interfaces
  • 1 x Power Jack
  • 1 x Micro SD/SDHC Card Slot
  • 1 x USB 3.0 Type-A
  • 1 x USB 2.0 Type-A
  • 1 x HDMI® V2.0 Type-A
  • 1 x Gigabit Ethernet
OS
  • Android 7.1/8.0
  • Linux Debian 9.0
  • Watch Dog Timer: Support
Power
  • Input: DC 12V (DC Jack2.0mm)
  • Consumption: 12V @ 1.2A (MAX. 14.4w)
Mounting
  • Panel Mounting
Downloads
FBP104E1 Download
