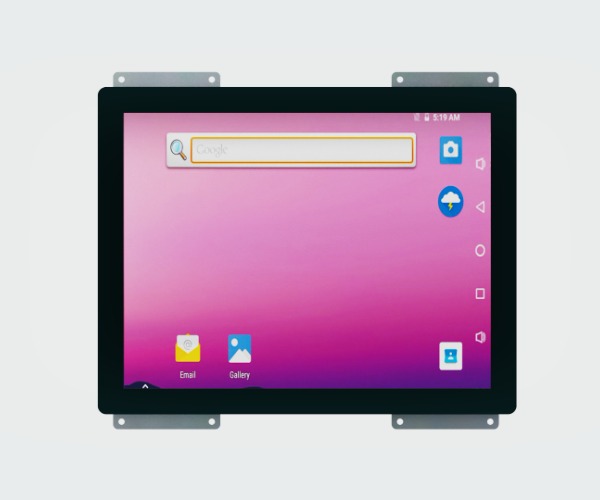

FBD104E1

Industrial Display Solution

Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.

Ordering Information:
VGA/DVI :FBD104E1-N0(Board Type:FBD4660LV)
VGA/HDMI:FBD104E1-N6(Board Type:FBD4666LV)
VGA/DVI/HDMI:FBD104E1-OS(Board Type:KC46)
VGA/CVBS:FBD101E1-R0(Board Type:FBD1260LV)

Product Features
Technical

Product Features
Chassis Case: Metal Bracket
10.4" 1280x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel: PCAP USB Interface

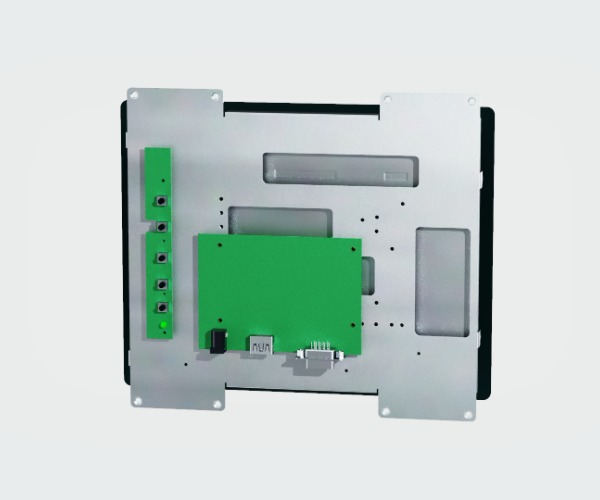

AD Board:FBD4660/FBD4666/KC46/FBD1260(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)
Mounting:Panel Mounting
Power: DC 12V

Specification
Chassis	Metal Bracket Dimensions(mm) 214.8x209x38.45 Color SECC Fanless
LCD Panel	10.4" 1024(RGB)x768 225.5 cd/m² (typ.) 85/85/85/85 Deg. PCAP USB Interface
Plug & Play	VESA DDC 2B

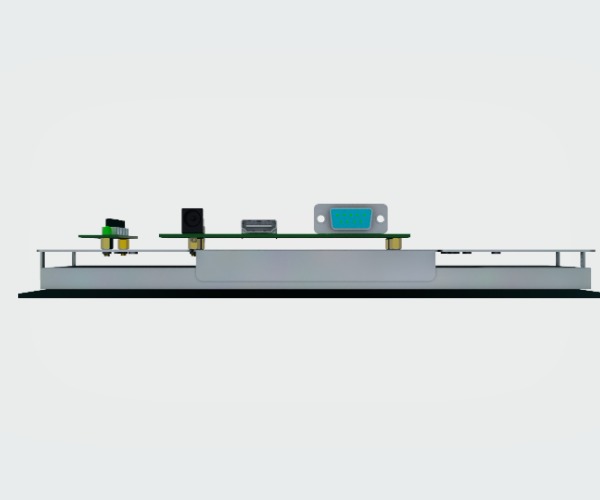

I/O Interfaces(Optional)	1xVGA，1XDVI 1xVGA，1xHDMI 1xVGA，1xDVI，1xHDMI 1xVGA，1xCVBS
OSD	keypad: 4_OSD_IO_key + power key
Power source	DC 12V (2.0mm DC jack)
Power Consumption	2.1W w/o Panel
Operation temperature	-10℃ to 70℃
