FBP104E1-M6

Industrial HMI Panel PCs
Chassis Case:Metal Bracket
TFT Panel:10.4" 1024x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel:PCAP USB Interface
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V
FBP104E1-M6
FBP104E1-M6
FBP104E1-M6
  • Product Features
  • Technical
Product Features
Chassis Case:Metal Bracket
TFT Panel:10.4" 1024x768 16.7M Colors (U/L/D/R): 85/85/85/85
Touch Panel:PCAP USB Interface
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V
Specification

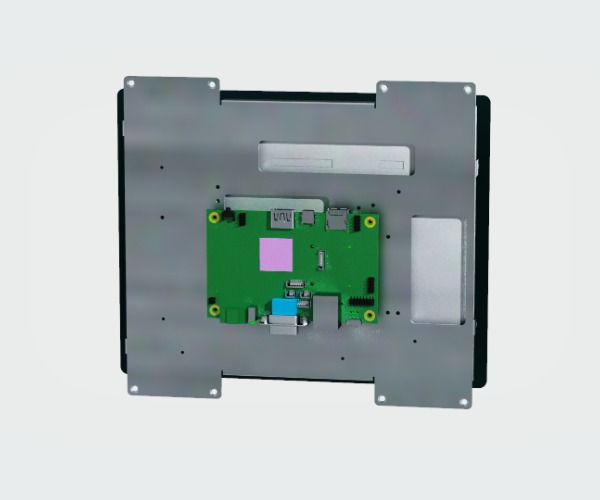

Chassis
  • Metal Bracket
  • Dimensions(mm) 241.8x209x44.59
  • Color SECC
  • Fanless
LCD Panel
  • 10.4"
  • 1024(RGB)x768
  • 225.5 cd/m² (typ.)
  • 85/85/85/85 Deg.
  • PCAP USB Interface
Memory 2GB DDR3-1066 SDRAM (Up to 4GB)
Storage 8GB eMMC (Up to 16GB)
OS
  • Android 6.0
  • Linux 4.1.15 (AMOS-820-QP SKU)
Display Interface 1.4 port, max. 1080P

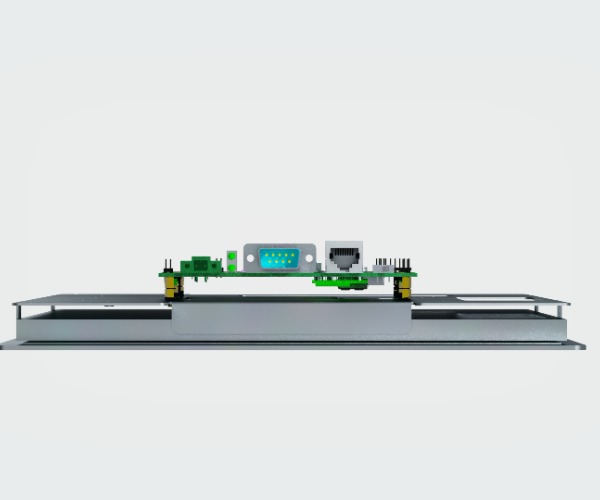

Front Panel I/O
  • 1 x 2-pole Terminal DC jack.
  • 1 x Power LED & WLAN/WPAN/WWAN LED (if Wi-Fi has installed)
  • 1 x COM1 port (supports 5-wire TX/RX/RTS/CTS) RS232 DTE mode/RS485/RS422
  • 1 x Gigabit Ethernet port (supports optional IEEE802.3 af type 1)
  • 1 x Micro SD/eMMC boot select switch

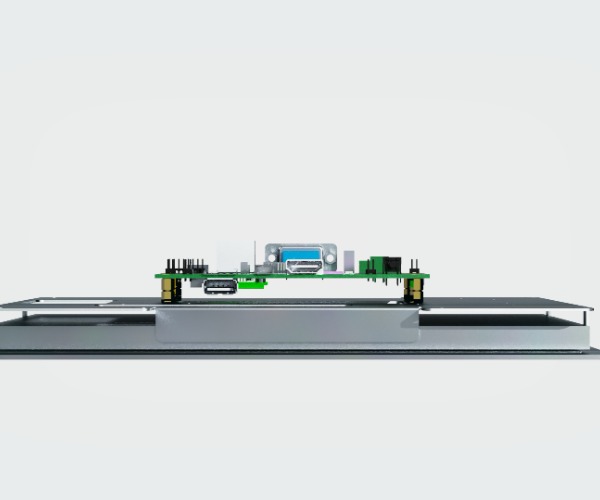

Rear Panel I/O
  • 1 x Reset button
  • 1 x HDMI® port
  • 1 x Mini USB 2.0 type B port support OTG
  • 1 x USB 2.0 type A
  • 1 x Micro SD/SDHC card slot
Operating Temperature -20°C ~ 70°C
Operating Humidity 10% to 90% (non-condensing)
Cooling System Fanless design
Power 1 x 2-pin Terminal Block 12V DC-in
PoE (Optional) Supports Power Device(PD): follows IEEE 802.3 at (25W)
Downloads
FBP104E1-M6 2D Drawing Download
