FOD101E0

Industrial Display Solution
Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.

Ordering Information:
*With Touch
VGA/DVI :FOD101E0-N0(Board Type:FBD4662LV)
VGA/DVI/RS232 OSD:FOD101E0-N2(Board Type:FBD4662LV)
VGA/HDMI :FOD101E0-N6(Board Type:FBD4666LV)

*Without Touch
VGA/DVI :FOD101N0-N0(Board Type:FBD4662LV)
VGA/DVI/RS232 OSD:FOD101N0-N2(Board Type:FBD4662LV)
VGA/HDMI :FOD101N0-N6(Board Type:FBD4666LV)

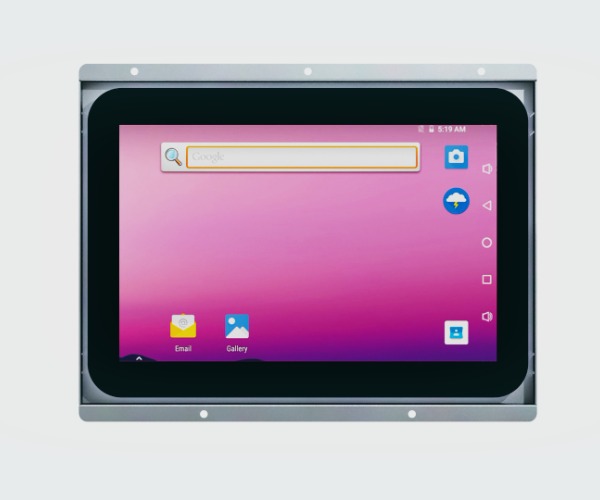

FOD101E0
FOD101E0
FOD101E0
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Open Frame
10.1" 1280x800 16.7M Colors (U/L/D/R): 80/80/80/80
Touch Panel: PCAP USB Interface
AD Board:FBD4662/FBD4666(Optional)
Input: VGA/DVI/ HDMI(Optional)

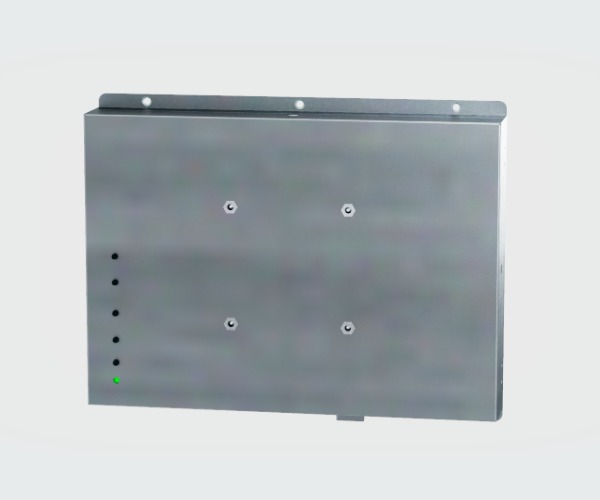

Mounting:Panel Mounting/VESA Mounting
Power: DC 12V
Specification
Chassis
  • Metal Open Frame
  • Dimensions(mm) 264.1*206.6*40
  • Color SECC
  • Fanless
LCD Panel
  • 10.1"
  • 1280 X 800
  • 330 cd/m² (typ.)
  • 80/80/80/80 Deg.
  • PCAP Touch
Plug & Play VESA DDC 2B

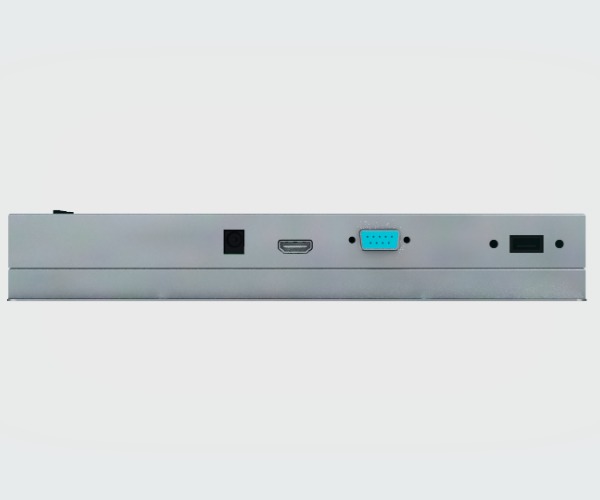

I/O Interfaces(Optional)
  • 1xVGA , 1xDVI
  • 1xVGA , 1xDVI ,1xRS232 OSD
  • 1xVGA , 1XHDMI
OSD(Optional)
  • keypad: 4_OSD_IO_key + power key
  • UART OSD
Power source DC 12V (2.0mm DC jack)
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FOD101E0 2D Drawing Download
