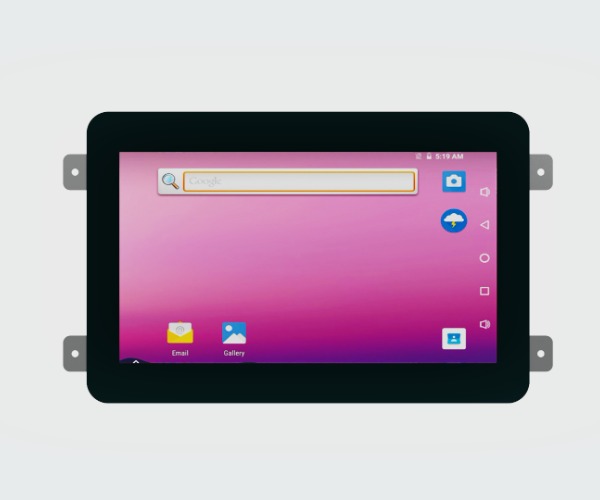

FBP070E1

Industrial HMI Panel PCs

Chassis Case:Metal Bracket
TFT Panel: 7" 1024x600
Touch: PCAP USB Interface
Operating System: Android/Debian
Mounting:Panel Mounting
Power: DC 12V

Product Features
Technical

Product Features
Chassis Case: Metal Bracket
TFT Panel: 7", 1024x600, 16.7M Colors, 200 nit, (U/L/D/R): 80/80/80/80
Touch: PCAP USB Interface
Operation System: Android
Mounting: Panel Mounting
Power: DC 12V

Specification

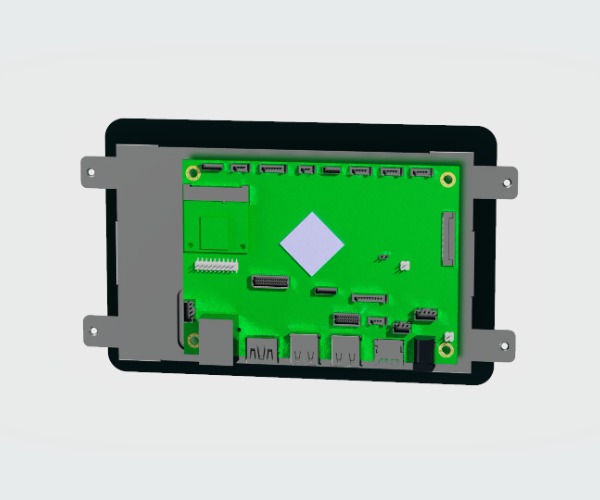

Chassis	Metal Bracket Dimensions(mm)202.33119.829.62 Color SECC Fanless
LCD Panel	7" 1024(RGB) x 600 200 cd/m² (typ.) 80/80/80/80 Deg. PCAP Touch
Processor	(Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory	LPDDR3-1866-2GB (Up to 4GB)
Storage	eMMC-16GB 1 x Micro SD/SDHC slot (Up to 1TB)

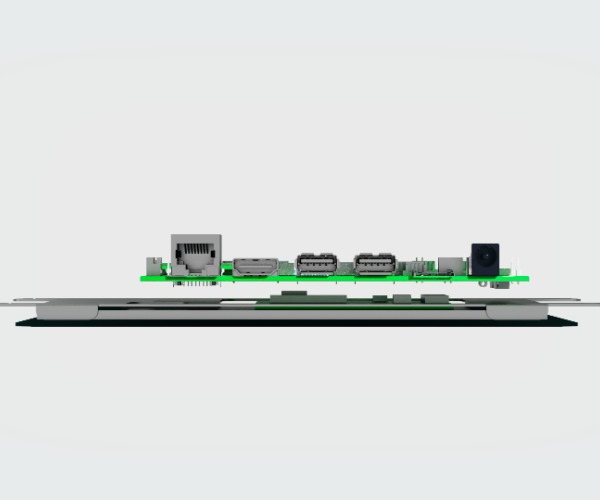

I/O Interfaces	1 x Power Jack 1 x Micro SD/SDHC Card Slot 1 x USB 3.0 Type-A 1 x USB 2.0 Type-A 1 x HDMI® V2.0 Type-A 1 x Gigabit Ethernet
OS	Android 7.1/8.0 Linux Debian 9.0 Watch Dog Timer: Support
Power	Input: DC 12V (DC Jack2.0mm) Consumption: 12V @ 1.2A (MAX. 14.4w)
Mounting	Panel Mounting

Downloads
FBP070E1 2D Drawing	Download
