FBP101E1

Industrial HMI Panel PCs
Chassis Case:Metal Bracket
TFT Panel:10.1" 1280x800 16.7M Colors (U/L/D/R): 80/80/80/80
Touch Panel: PCAP USB Interface
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V

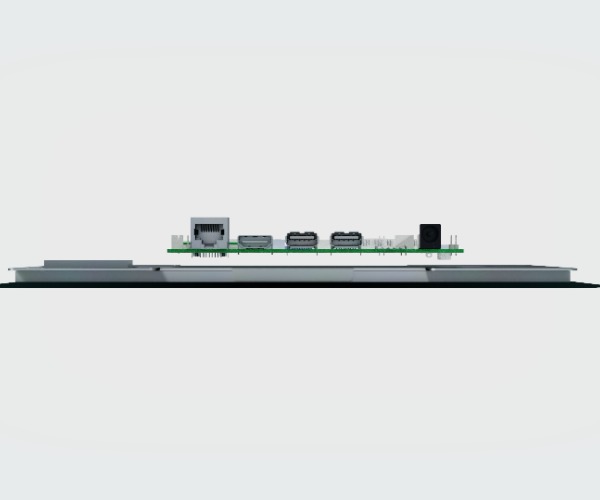

FBP101E1

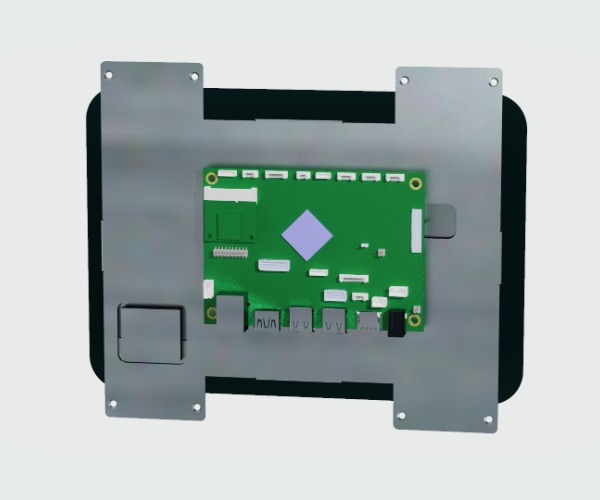

FBP101E1

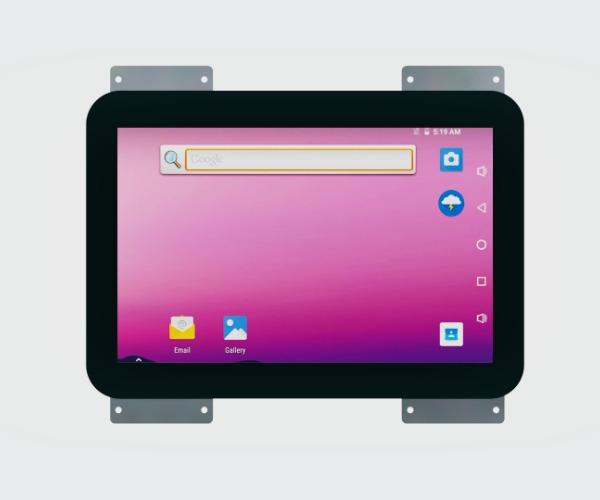

FBP101E1
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Bracket
TFT Panel: 10.1", 1280x800, 16.7M Colors, 330 nit, (U/L/D/R): 80/80/80/80
Touch Panel: PCAP
Operation System: Android
Mounting: Panel Mounting
Power: DC 12V
Specification
Chassis
  • Metal Bracket
  • Dimensions(mm):254.1*208.6*32.49
  • Color SECC
  • Fanless
LCD Panel
  • 10.1"
  • 1280(RGB) x 800
  • 300 cd/m² (typ.)
  • 800:1(typ.)
  • 85/85/85/85 Deg
  • PCAP Touch
Processor (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory LPDDR3-1866-2GB (Up to 4GB)
Storage
  • eMMC-16GB
  • 1 x Micro SD/SDHC slot (Up to 1TB)
Display 1 x Type A
Multimedia
  • 1 x Speaker (1W)
  • 1 x Camera Front 5-megapixel (CMOS) w/ Mic x1 (Optional)
I/O Interfaces
  • 1 x Power Jack
  • 1 x Micro SD/SDHC Card Slot
  • 1 x USB 3.0 Type-A
  • 1 x USB 2.0 Type-A
  • 1 x HDMI® V2.0 Type-A
  • 1 x Gigabit Ethernet
Wireless Communication (Optional)
  • WIFI + BT V4.1 (Optional)
  • HF 13.56 MHz RFID
  • 4G LTE module
OS
  • Android 7.1/8.0
  • Linux Debian 9.0
  • Watch Dog Timer: Support
Power
  • Input: DC 12V (DC Jack2.0mm)
  • Consumption: 12V @ 1.2A (MAX. 14.4w)
Mounting
  • Panel Mounting
Reliability
  • Operating Temperature -10°C ~ 50°C with air flow
  • Storage Temperature -20°C ~ 60°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 0.85 kg
Downloads
FBP101E1 2D Drawing Download
