FBD190E1

Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
6. HMI..etc.


Ordering Information:
VGA/DVI :FBD190E1-N0(Board Type:FBD4660LV)
VGA/HDMI :FBD190E1-N6(Board Type:FBD4666LV)
VGA/CVBS :FBD190E1-R0(Board Type:FBD1260)
VGA/DVI/HDMI :FBD190E1-OS(Board Type:FBDC-KC46)

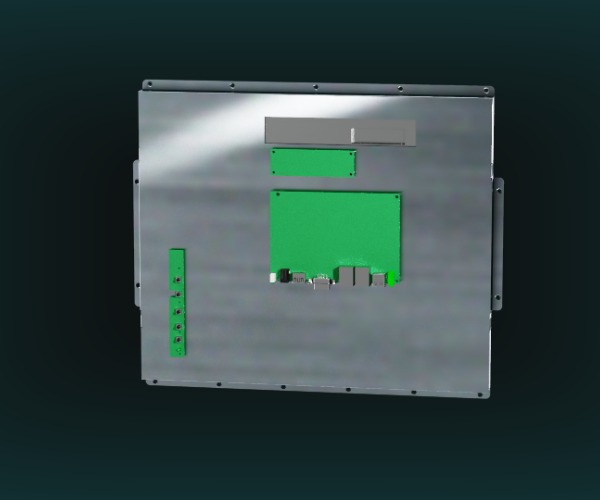

FBD190E1

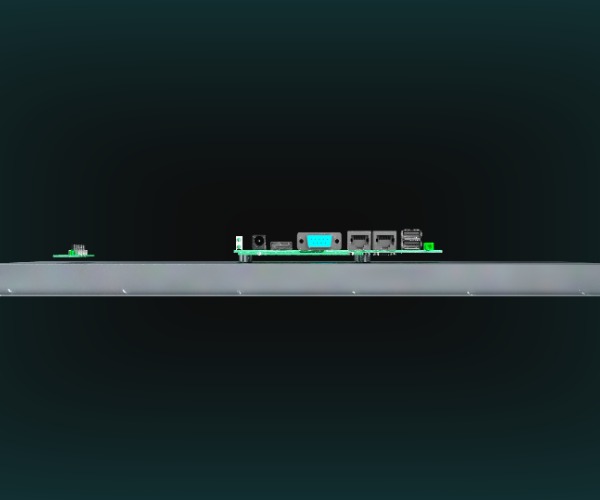

FBD190E1

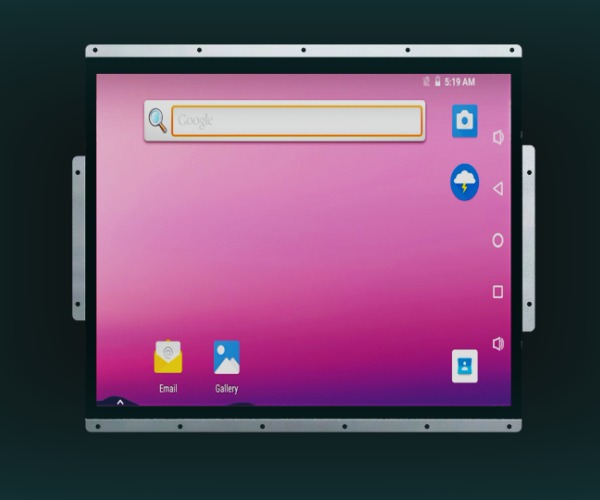

FBD190E1
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Bracket
TFT Panel:19"1280x1024 16.7M Colors (U/L/D/R):80/85/80/85
Touch Panel: PCAP USB Interface
AD Board:FBD4660/FBD4666/FBD1260/FBDC-KC46(Optional)
Input: VGA/DVI/ HDMI/CVBS(Optional)
Mounting:Panel Mounting
Power: DC 12V
Specification
Chassis
  • Metal Bracket
  • Dimensions(mm) 397.32x329.03x43.26
  • Color SECC
  • Fanless
LCD Panel
  • 19"
  • 1280x1024
  • 350 cd/m² (typ.)
  • 80/85/80/85 Deg.
  • PCAP Touch
Plug & Play VESA DDC 2B
I/O Interfaces(Optional)
  • 1xVGA , 1xDVI
  • 1xVGA , 1XHDMI
  • 1xVGA , 1xCVBS
  • 1xVGA , 1xDVI , 1xHDMI
OSD(Optional)
  • keypad: 4_OSD_IO_key + power key
  • UART OSD
Power source DC 12V
Power Consumption 2.1W w/o Panel
Operation temperature -10℃ to 70℃
Downloads
FBD190E1 2D Drawing Download
