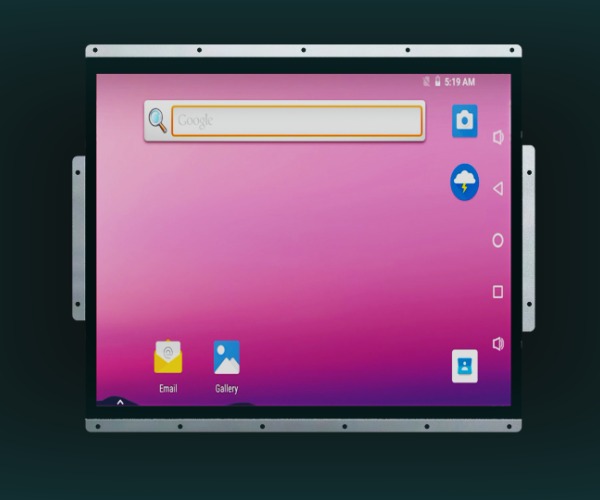

FBP190E1

Industrial HMI Panel PCs

Chassis Case:Metal Bracket
TFT Panel:19"1280x1024 16.7M Colors (U/L/D/R):80/85/80/85
Touch Panel: PCAP
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V

Product Features
Technical

Product Features
Chassis Case:Metal Bracket
TFT Panel:19"1280x1024 16.7M Colors (U/L/D/R):80/85/80/85
Touch Panel: PCAP
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V

Specification

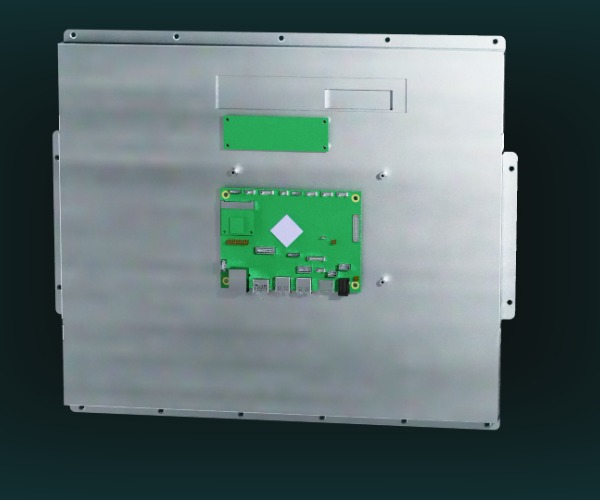

Chassis	Metal Bracket Dimensions(mm) 397.32x329.03x41.52 Color SECC Fanless
LCD Panel	19" 1280x1024 350 cd/m² (typ.) 80/85/80/85 Deg. PCAP Touch
Processor	Dual Cortex-A72 @2.0Ghz + Quad Cortex-A53 @ 1.5Ghz
Memory	LPDDR3-1866-2GB
Storage	8GB eMMC ( Up to 16 GB) Micro SD Card Slot (Max. 1 TB available)

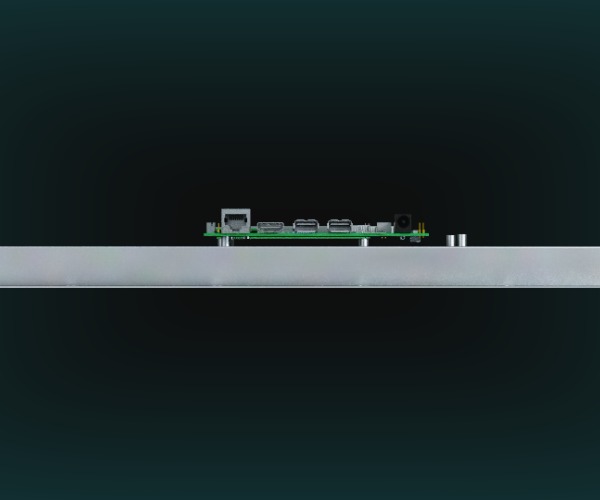

I/O Interfaces	1 x Power Jack 1 x Micro SD/SDHC Card Slot 1 x USB 3.0 Type-A 1 x USB 2.0 Type-A 1 x HDMI® V2.0 Type-A 1 x Gigabit Ethernet
Wireless Communication (Optional)	Wi-Fi + BT V4.1
Power	Consumption: 12V @ 1.2A (MAX. 14.4w)
OS	Android 7.1 Linux Debian Linux(Debian 9.0)
Mounting	Panel Mounting
Reliability	Operating Temperature -10°C ~ 50°C with air flow Storage Temperature -20°C ~ 60°C Humidity 10% ~ 90%, non-condensing Weight(Net) 0.85 kg

Downloads
FBP190E1 2D Drawing	Download
