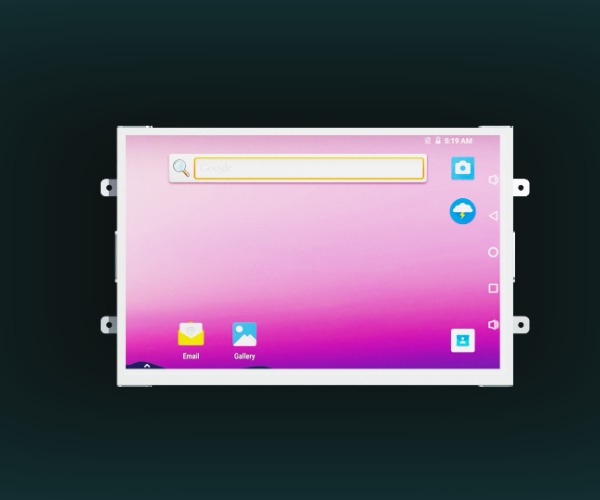

FBP101R1-M6

Industrial HMI Panel PCs
Chassis Case:Metal Bracket
TFT Panel:10.1" 1280x800 16.7M Colors (U/L/D/R): 80/80/80/80
Touch Panel: Resistive
Operation System:Android
Mounting:Panel Mounting
Power: DC 12V
FBP101R1-M6
FBP101R1-M6
FBP101R1-M6
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Bracket
TFT Panel: 10.1", 1280x800, 16.7M Colors, 330 nit, (U/L/D/R): 80/80/80/80
Touch Panel: Resistive
Operation System: Android
Mounting: Panel Mounting
Power: DC 12V
Specification
Chassis
  • Metal Bracket
  • Dimensions(mm) 240x163.5x26.5
  • Color SECC
  • Fanless
LCD Panel
  • 10.1"
  • 1280 X 800
  • 330 cd/m² (typ.)
  • 80/80/80/80 Deg.
  • Resistive Touch
Processor NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz
Memory 2GB DDR3-1066 SDRAM (Up to 4GB)
Storage 8GB eMMC (Up to 16GB)
OS
  • Android 6.0
  • Linux 4.1.15 (AMOS-820-QP SKU)
Display Interface 1.4 port, max. 1080P

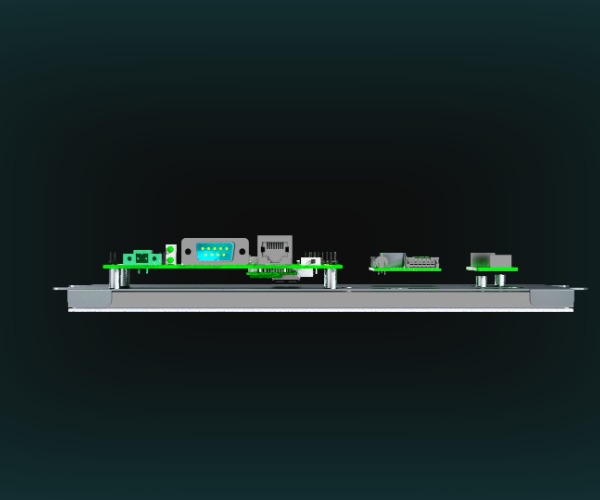

Front Panel I/O
  • 1 x 2-pole Terminal DC jack.
  • 1 x Power LED & WLAN/WPAN/WWAN LED (if Wi-Fi has installed)
  • 1 x COM1 port (supports 5-wire TX/RX/RTS/CTS) RS232 DTE mode/RS485/RS422
  • 1 x Gigabit Ethernet port (supports optional IEEE802.3 af type 1)
  • 1 x Micro SD/eMMC boot select switch

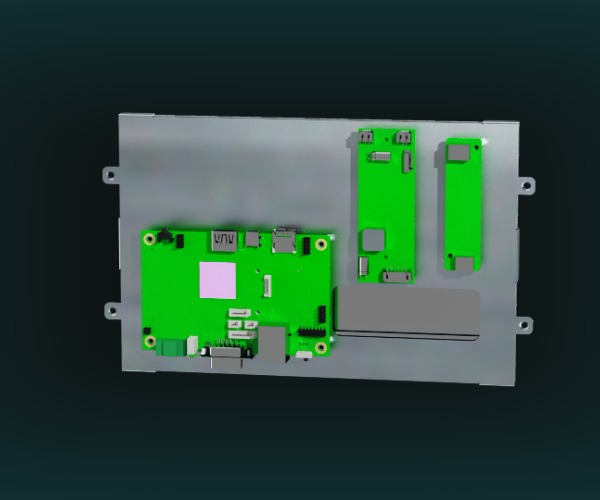

Rear Panel I/O
  • 1 x Reset button
  • 1 x HDMI® port
  • 1 x Mini USB 2.0 type B port support OTG
  • 1 x USB 2.0 type A
  • 1 x Micro SD/SDHC card slot
Operating Temperature -20°C ~ 70°C
Operating Humidity 10% to 90% (non-condensing)
Cooling System Fanless design
Power 1 x 2-pin Terminal Block 12V DC-in
PoE (Optional) Supports Power Device(PD): follows IEEE 802.3 at (25W)
Downloads
FBP101R1-M6 2D Drawing Download
