FES215EA
Industrial HMI Panel PCs
．The FES215EA Series is designed with with aluminum frame, ultra-Slim, compact outline to make it takes full advantage of the lowest power, fan less system design.
．The powerful graphic engines provide optimized performance on supporting multi-format video decoders including H.264/H.265/VP9up to4Kx2K, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and embedded 3D GPU makes FEB710 completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1. Special 2D hardware engine will maximize display performance and provide very smooth operation.
．On-board storage includes eMMC Flash Device and can expand through one Micro SD card.
．The FES215EA is very suitable for a variety of industrial transportation, selling infotainment, self-ordering machine (HMI) and TV advertisement applications.
．The powerful graphic engines provide optimized performance on supporting multi-format video decoders including H.264/H.265/VP9up to4Kx2K, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and embedded 3D GPU makes FEB710 completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1. Special 2D hardware engine will maximize display performance and provide very smooth operation.
．On-board storage includes eMMC Flash Device and can expand through one Micro SD card.
．The FES215EA is very suitable for a variety of industrial transportation, selling infotainment, self-ordering machine (HMI) and TV advertisement applications.
- Product Features
- Technical
| Product Features | |
| Chassis Case: Aluminum frame | |
| TFT Panel:21.5”, 1920x1080, 350 nit, (U/L/D/R): 89/89/89/89 | |
| Touch Panel: PCAP Multi-Touch | |

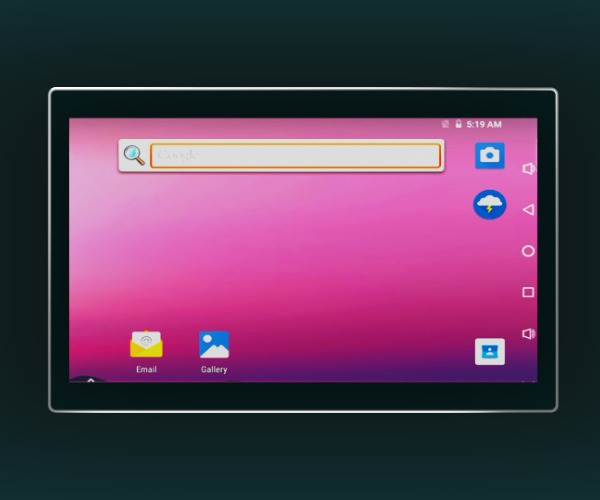

| Operating System: Android 7.1/ Debian 9.0 | |
| Waterproof Rating: Front IP65 | |

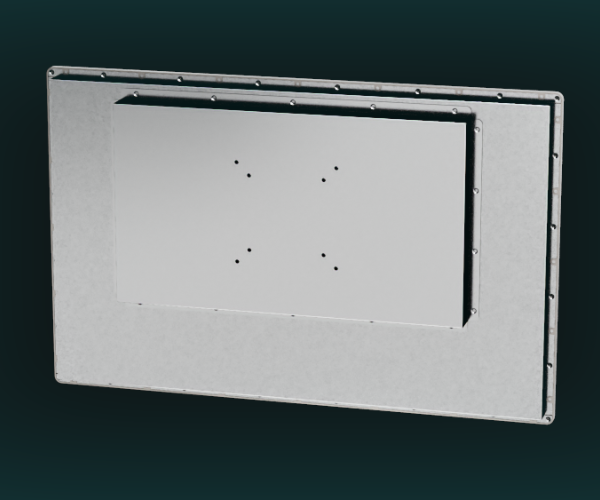

| Mounting: VESA mounting | |
| Power: DC-12V |
| Specification | |
| Chassis |
|
| LCD Panel |
|
| Processor | (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz) |
| Memory | 2GB LPDDR3-1866 (Up to 4GB) |
| Storage |
|
| Multimedia | None |
| I/O Interfaces |
|
| Wireless Communication (Option) |
|
| OS |
|
| Power |
|
| Mounting |
|
| Reliability |
|
| Downloads | |
| FES215EA 2D Drawing | Download |
