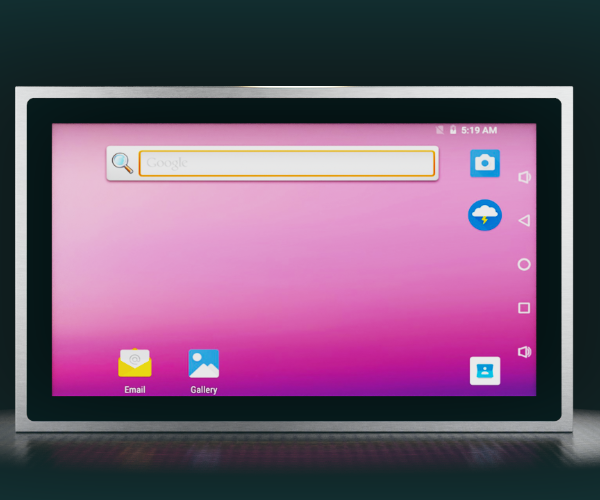

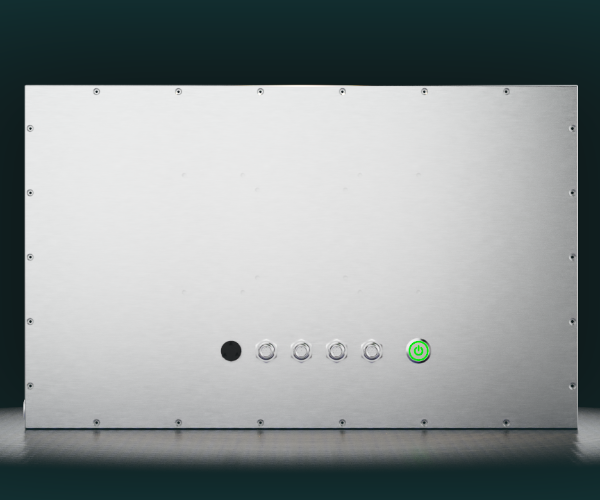

RSA185EK-M6
IP66/ IP69K Rugged Stainless Solution
Rugged Stainless Panel PCs Market:
．Food & Beverage Processing
．Pharmaceutical Processing
．Car Wash
．Slaughterhouse
The RSA series comes in panel PCs and industrial monitors with all-around features, the Panel PCs are ready for ARM based or X86 based platform which deliver for computing performance levels.
RSA series brings the most protective panel solution, it goes beyond the basic standard by achieving all IP66 and IP69K-certified with M12 connectors which is capable of withstanding the high-pressure water washing down and preventing the machine from dust accumulation.
All is designed for a wide range of industrial applications including food/beverage, chemical, factory automation and other high standard environment.
．Food & Beverage Processing
．Pharmaceutical Processing
．Car Wash
．Slaughterhouse
The RSA series comes in panel PCs and industrial monitors with all-around features, the Panel PCs are ready for ARM based or X86 based platform which deliver for computing performance levels.
RSA series brings the most protective panel solution, it goes beyond the basic standard by achieving all IP66 and IP69K-certified with M12 connectors which is capable of withstanding the high-pressure water washing down and preventing the machine from dust accumulation.
All is designed for a wide range of industrial applications including food/beverage, chemical, factory automation and other high standard environment.
- Product Features
- Technical
| Product Features | |
| IP69K certified with M12 connector | |
| 18.5” LCD Panel with PCAP Multi-Touch fixed by air bonding | |
| Touch Power Button to prevent mistouch when cleaning the screen | |
| Family expansion designed | |
| Wide Temperature for option | |
| 316/V4A stainless steel as default | |
| VESA Mount / YOKE Mount | |
| Operation System: Android 6.0/9.0, Linux with QT5.5 | |
| Safety/EMC: CE/FCC Class B |
| Specification | |
| Chassis |
|
| LCD Panel |
|
| Processor | NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz |
| Memory | 2GB DDR3-1066 SDRAM (Up to 4GB) |
| Storage | 8GB eMMC(Up to 16GB) |
| I/O Interfaces |
|
| Buttons |
|
| Wireless Communication |
|
| OS |
|
| Power | Input: DC9-36V(M12 to Terminal block-3pin-3.81mm) |
| Mounting |
|
| Environment |
|
| Downloads |
