FRS-P215EK-M6/ M7

IP66/ IP69K Rugged Stainless Solution
Rugged Stainless Panel PCs Market:
．Food & Beverage Processing
．Pharmaceutical Processing
．Car Wash
．Slaughterhouse

The RSA series offers a comprehensive range of panel PCs and industrial monitors, designed with robust features to meet demanding industrial requirements.

The Panel PCs are available with ARM- and x86-based platforms, delivering scalable computing performance to suit various applications.

Engineered for maximum protection, the RSA series exceeds standard industrial requirements, achieving IP66 and IP69K certifications. Equipped with M12 connectors, these devices withstand high-pressure washdowns and effectively prevent dust accumulation, ensuring long-term reliability in harsh environments.

Designed for various industrial applications, including food & beverage processing, chemical industries, factory automation, and other high-standard environments, the RSA series provides a durable and efficient solution for critical operations.

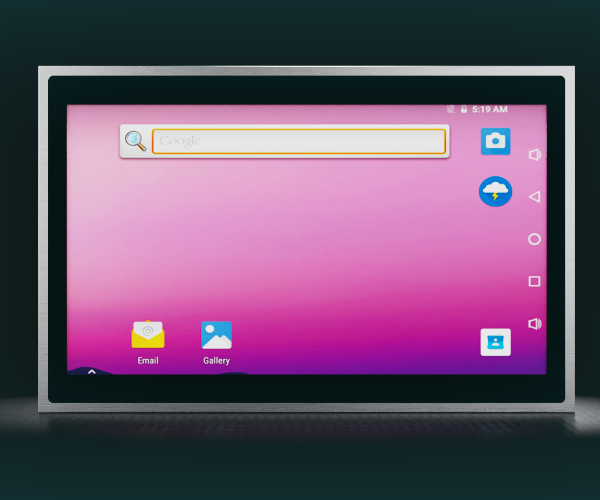

FRS-P215EK-M6/ M7
FRS-P215EK-M6/ M7
  • Product Features
  • Technical
Product Features
IP69K certified with M12 connector
21.5” LCD Panel with PCAP Multi-Touch fixed by air bonding
Touch Power Button to prevent mistouch when cleaning the screen
Family expansion designed
Wide Temperature for option
316/V4A stainless steel as default
VESA Mount / YOKE Mount
Operation System: Android 6.0/9.0, Linux with QT5.5
Safety/EMC: CE/FCC Class B
Specification
Chassis
  • 316/V4A Stainless Steel (314 Optional)
  • Dimensions(mm): 536.76*74.5*346.3
  • Color: Silver
  • Fanless
LCD Panel
  • 21.5"
  • 1920x1080
  • Brightness: 500 nits
  • Contrast Ratio 1000:1
  • Support Color: 16.7M
  • Viewing Angle: 89/89/89/89
  • P-CAP Touch Multi-touch Air Bonding (Optical Bonding For Option)
Processor (Optional)
  • NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz (Product Name: M6)
  • Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz (Product Name: M7)
Memory 2GB DDR3-1066 SDRAM (Up to 4GB)
Storage 8GB eMMC(Up to 32GB)

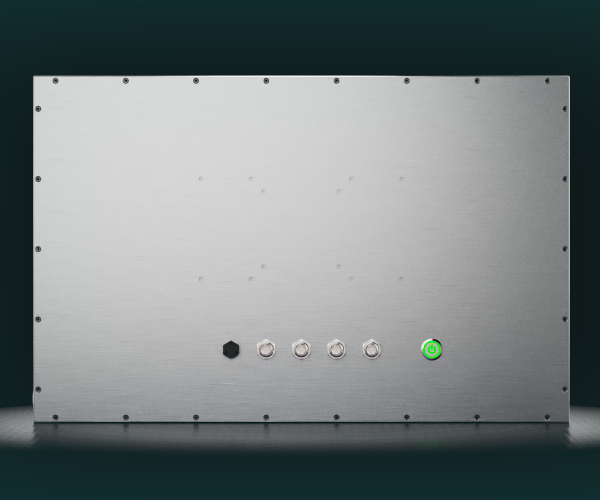

I/O Interfaces
  • 1 x M12 LAN
  • 1 x M12 3-Pin Power 9~36V
  • 1 x M12 Full COM1, RS232/422/485
  • 1 x M12 USB 2.0 with OTG
  • 1 x Pressure relief valve
Buttons
  • 1x Power Button 19mm (Green)
  • 1x Touch Power Button 19mm (Blue)
Wireless Communication
  • WiFi+BT V4.1 (Optional)
  • HF13.56 MHz RFID (Optional)
  • 4G LTE module (Optional)
OS
  • Android 6.0/ 9.0/ 10
  • Linux Yocto Project with QT 5.5
  • Debian 10
  • Ubuntu 20.04 LTS
  • Watch Dog Timer Support
Power Input: DC9-36V(M12 to Terminal block-3pin-3.81mm)
Mounting
  • VESA Mount(75*75、100*100、200*100)
  • YOKE Mount
Environment
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -20 ~ 60°C
  • Humidity: 10%~90%, non-condensing
  • IP69K Certified
  • Safety/EMC: CE/FCC Class-B
Downloads
FRS-P215EK Series 2D Drawing Download
FRS-P215EK-M6 Download
