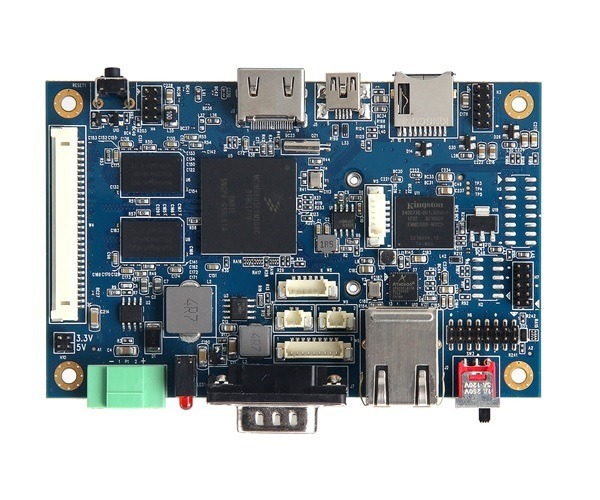

MBE60
Embedded Single Board Computer
The MBE60 Series of motherboard integrated various useful peripheral circuit that provides a completed connectivity for a wide variety of industrial automation, transportation, infotainment, HMI, and energy management applications.
The heart of the motherboard MBE60 is the i.MX6 Quad/Dual or DualLite processor which provides complete platform for project evaluation and solution feasibility testing that decreases the time to market and lowers initial cost.
The heart of the motherboard MBE60 is the i.MX6 Quad/Dual or DualLite processor which provides complete platform for project evaluation and solution feasibility testing that decreases the time to market and lowers initial cost.
- Product Features
- Technical
| Product Features | |
| A small 2.5 inch compact design | |
| NXP i.MX6 Quad/ Dual Lite Cortex-A9 1.0GHz | |
| 2GB DDR3-1066 SDRAM/ 8GB eMMC | |
| GigE x1, 2.4G/ 5G Wi-Fi (mPCIe) x1 | |
| LVDS: dual channel-24bit for max. 1080P | |
| Support OS Android 6.0, Linux 4.1.15 Yocto Project with QT5.5 | |
| SD/ eMMC boot-up selectable | |
| Power Over Ethernet ( Optional) |
| Specification | |
| Processor | 1.0GHz NXP i.MX6 Quad/ Dual/ Dual Lite Cortex-A9 SoC |
| Memory | 2GB DDR3-1066 SDRAM (Up to 4GB) |
| Storage | 8GB eMMC (Up to 16GB) |
| OS |
|
| Display Interface | LVDS: dual channel-24bit for max. 1080P |
| I/O |
|
| Internal I/O |
|
| Operating Temperature |
|
| Operating Humidity | 10% to 90% (non-condensing) |
| Cooling System | Fanless design |
| Dimension ( L x W) | 110mm x 70mm |
| Power Input | 12V |
| PoE (Optional) | Supports Power Device(PD): follows IEEE 802.3 af |
