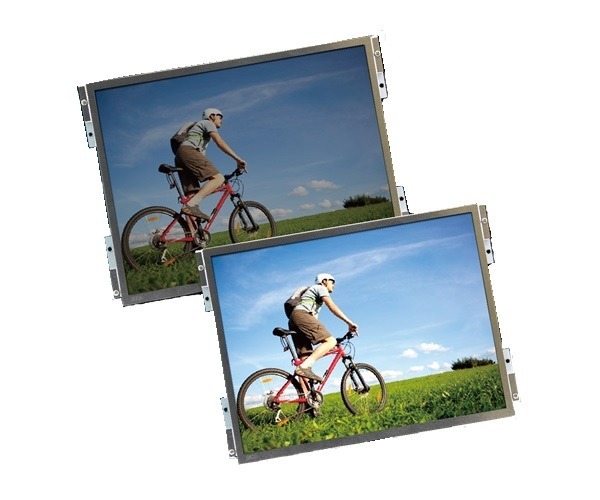

FT133-EDC03V0A

TFT Panel/Touch
Benefit of High Brightness Solutions
1. Enhanced sunlight readability
2. High brightness up to 2000 nits

Suitable Applications and Markets
Transportation: Marine navigation, In-vehicle computer systems
HMI: ATMs, Outdoor KIOSK, Vending machine
Public Information Displays
Outdoor digital signages
FT133-EDC03V0A
  • Product Features
  • Technical
Product Features
13" (1920x1080) TFT Module
Brightness 1000 cd/m2, PWM LED driver board included
Contrast ratio: 700:1
Interface: LVDS
Specification
TFT Size 13"
Luminance 1000 cd/m2
Contrast Ratio 700:1
Viewing Angle 170/ 170
Interface LVDS
Operating Temperuature 0~70
Downloads
FT133-EDC03V0A Datasheet Download
