FT104-EDC16/19
TFT Panel/Touch
Benefit of High Brightness Solutions
1. Enhanced sunlight readability
2. High brightness up to 2000 nits
Suitable Applications and Markets
Transportation: Marine navigation, In-vehicle computer systems
HMI: ATMs, Outdoor KIOSK, Vending machine
Public Information Displays
Outdoor digital signages
1. Enhanced sunlight readability
2. High brightness up to 2000 nits
Suitable Applications and Markets
Transportation: Marine navigation, In-vehicle computer systems
HMI: ATMs, Outdoor KIOSK, Vending machine
Public Information Displays
Outdoor digital signages
- Product Features
- Technical
| Product Features | |

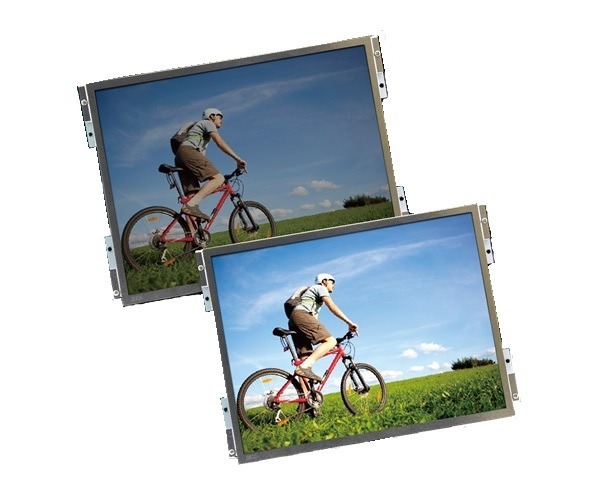

| 10.4" (1024x768) TFT Module | |
| Brightness 1000/ 1500 cd/m2, PWM LED driver board included | |
| Contrast ratio: 1400:1 | |
| Interface: LVDS |
| Specification | |
| TFT Size | 10.4 |
| Luminance | 1000/ 1500 cd/m2 |
| Contrast Ratio | 1400:1 |
| Viewing Angle | 178/178 |
| Interface | LVDS |
| Operating Temperuature | -30~80 |
