FT101-EDC04V0

TFT Panel/Touch
Benefit of High Brightness Solutions
1. Enhanced sunlight readability
2. High brightness up to 2000 nits

Suitable Applications and Markets
Transportation: Marine navigation, In-vehicle computer systems
HMI: ATMs, Outdoor KIOSK, Vending machine
Public Information Displays
Outdoor digital signages

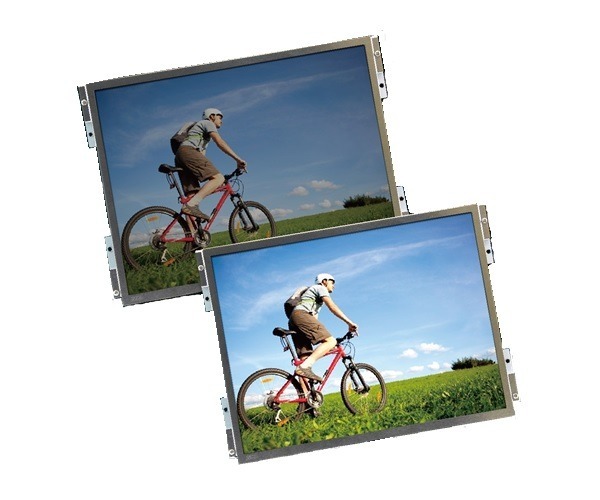

FT101-EDC04V0
  • Product Features
  • Technical
Product Features
10.1" (1280x800) TFT Module
Brightness 1000 cd/m2, PWM LED driver board included
Contrast ratio: 800:1
Interface: LVDS
Specification
TFT Size 10.1"
Luminance 500 cd/m2
Contrast Ratio 800:1
Viewing Angle 170/170
Interface LVDS
Operating Temperuature -20~70
Downloads
FT101-EDC04V0 Datasheet Download
