DSP133 E3/E4

Digital Signage Panel/Box

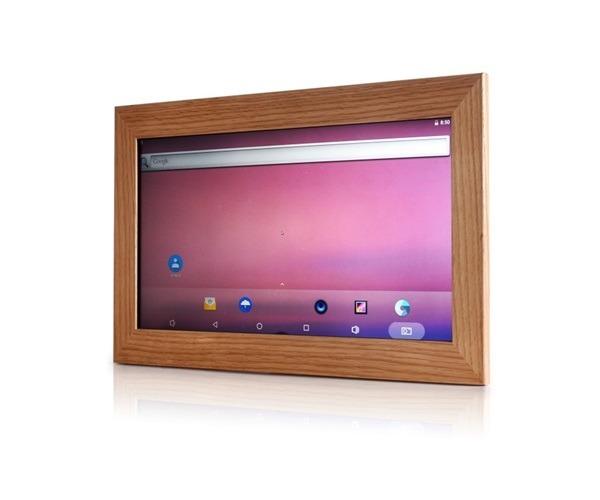

The FORENEX FES133 E3.E4 Panel-PC Series is designed with an elegant natural wooden (oak) frame, ultra-Slim, compact outline to make it takes full advantage of the lowest power, fan less system design.
In the inner, embeds powerful graphic engines provide optimized performance on supporting multi-format video decoders including H.264/H.265/VP9up to4Kx2K, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and embedded 3D GPU makes FEB710 completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1. Special 2D hardware engine will maximize display performance and provide very smooth operation.
On-board storage includes eMMC Flash Device and can expand through one Micro SD card.
The FES133 E3.E4 is very suitable for a variety of industrial transportation, selling infotainment, self-ordering machine (HMI) and TV advertisement applications.
Product Features
Designed with elegant natural wooden (oak) frame
Panel: 13.3" 1920x1080 LCD
Touch: PCAP, 10 Points Multi-Touch
Memory: LPDDR3-1886-2GB (Up to 4GB)
Boot Flash: eMMC-16GB
Power: 802.3at Type2, PoE+
I/O: RJ45,USB 3.2 Gen 1 (5Gb/s) Type A-OTG, USB 2.0 Type A
Operating System: Android 7.1/ Debian 9.0
VESA mounting,Protrait stand,Landscape stand
Specification
Chassis
  • Wooden (oak) frame + black metal chassis
  • Fanless
13.3" LCD Panel
  • 1920x1080
  • 250 cd/m² (typ.)
  • 600:1(typ.)
  • 89/89/89/89 Deg
  • P-CAP Touch 10-Point
  • 348.8 mm x 231.1 mm x 37 mm
Processor (Dual-core Cortex-A72 up to 1.8GHz) + (Quad-core Cortex-A53 up to 1.5GHz)
Memory 2GB LPDDR3-1866 (Up to 4GB)
Storage
  • eMMC-16GB
  • 1 x Micro SD/SDHC slot (Up to 1TB)
Display 1 x Type A
Multimedia None
None
  • 1 x GbE RJ45 w/ 802.3 at Type2 “PoE+”
  • 1 x USB 3.2 Gen 1 (5Gb/s) Type A-OTG
  • 1 x USB 2.0 Type A
Wireless Communication (Option)
  • WIFI + BT V4.1
  • 4G LTE module
LED & Button (Option)
  • 1 x Power LED, 1 x BT LED, 1 x Wi-Fi LED
  • 1 x Reset Tact Switch
OS
  • Android 7.1/8.0
  • Linux Debian 9.0
  • Watch Dog Timer: Support
Power
  • Input: DC 12V
  • Consumption: 12V @ 1.2A
Mounting
  • VESA Mounting (mm): 100 x 100
Reliability
  • Operating Temperature -10°C ~ 50°C with air flow
  • Storage Temperature -20°C ~ 60°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 1.35 Kg
  • Safety/EMC CE/FCC class-A compliant
