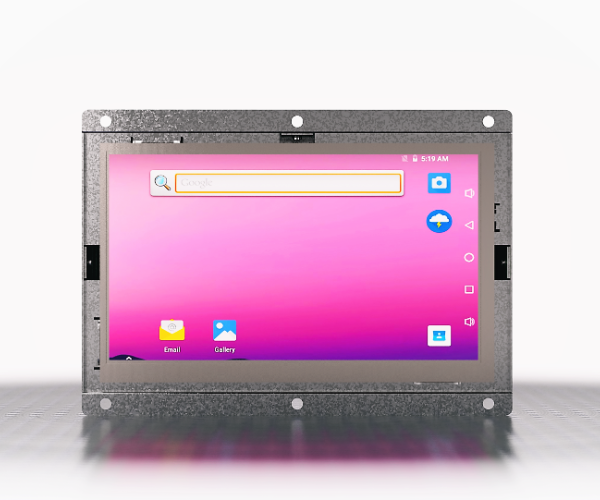

FOP070NO

Industrial HMI Panel PCs
．The FOP070NO is designed with metal rear cover chassis.
．Due to take full advantage of the lowest power, fanless system design for a wide variety of industrial automation, transportation, door-control, IIoT and HMI applications.
FOP070NO
FOP070NO
  • Product Features
  • Technical
Product Features
Chassis Case: Metal Open Frame
TFT Panel: 7”, 1024x600, 16.7M colors, 450 nit, (U/L/D/R): 80/80/80/80
Touch Panel: None
Operating System: Android7.1 /Debian8.0
Waterproof Rating: None
Mounting: VESA mounting, Clips mounting,Panel mounting
Power: 12V DC Power
Specification
Chassis
  • Metal Open Frame
  • VESA Mount (75 x 75)
  • Panel Mount with mounting clips or screw (Option)
  • Fan less design
LCD Panel
  • 7"
  • 1024(RGB) x 600
  • 450 cd/m² (typ.)
  • 80/80/80/80 Deg.
Processor Dual-core Cortex-A72 up to 2.0GHz + Quad-core Cortex-A53 up to 1.5GHz
Memory DDR4 2GB
Storage 8GB eMMC

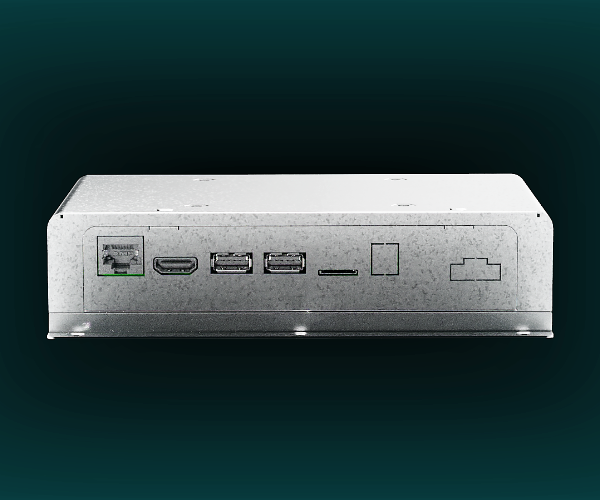

I/O Interfaces
  • 1x Gigabit RJ45 LAN
  • 1x USB 2.0 Type A
  • 1x USB 3.0 Type A
  • 1x HDMI 2.0
  • 1x Micro SD Card
  • 1x 12V Power Jack
OS Android 7.1/8.0
Power Rating 12V DC Power Input
Reliability
  • Operating Temperature -10~50 deg.C
  • Storage Temperature -30~85 deg.C
