FES070E7

Industrial HMI Panel PCs
．The FES070E7 is designed with an ABS plastic bezel, metal rear cover chassis
．The PCAP touch panel covers the front of FES070E7 to able to adapt front-IP65 ingress protection.
．Ｄue to take full advantage of the lowest power, fanless system designed for a wide variety of industrial automation, transportation, door-control, IIoT and HMI applications.

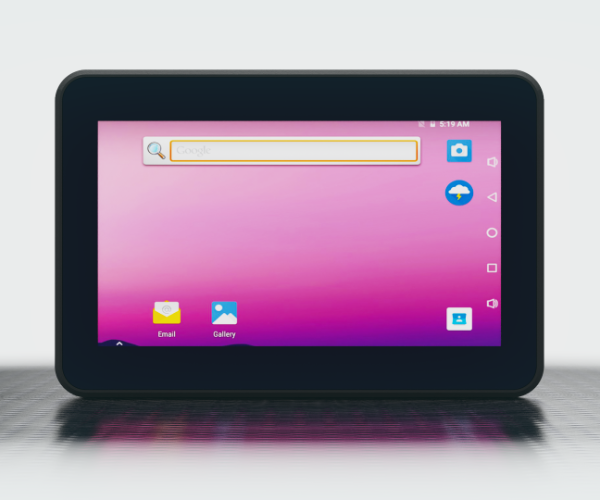

FES070E7

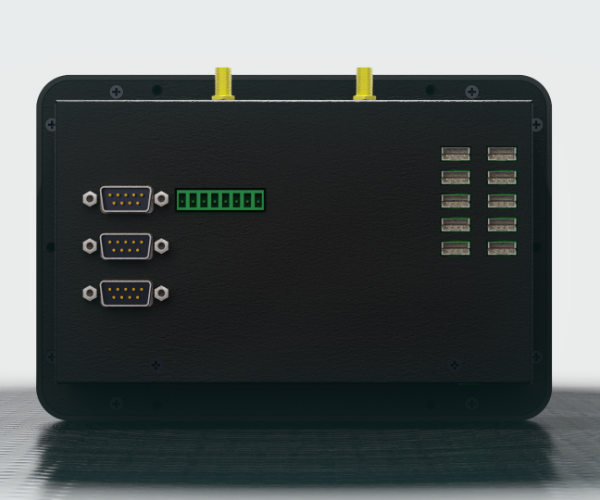

FES070E7

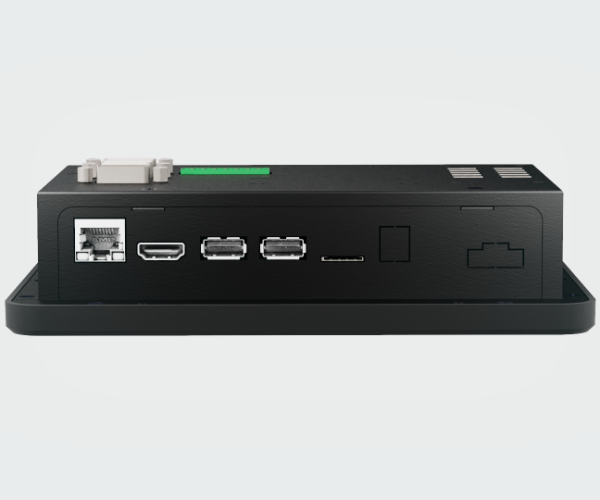

FES070E7
  • Product Features
  • Technical
Product Features
Chassis Case: Metal with Plastic Frame
TFT Panel: 7”, 1024x600, 16.7M colors, 450 nit, (U/L/D/R): 80/80/80/80
Touch Panel: PCAP Multi-Touch, Hardness> 7H
Operating System: Android/Debian
Waterproof Rating: Front IP65
Mounting: Panel mounting, VESA mounting, Clips mounting
Power: DC9-36V input, 3-pole phonenix Jack with ignition control
EMI: CE/FCC Class A
Specification
Chassis
  • ABS Plastic Bezel , Metal Rear Chassis
  • Dimensions(mm) 188.6 x 126.5 x 44.7
  • Color Black
  • Fanless
LCD Panel
  • 7"
  • 1024(RGB) x 600
  • 450 cd/m² (typ.)
  • 800:1(typ.)
  • 80/80/80/80 Deg.
  • Project Capacitive
Processor Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz
Memory LPDDR3-1866-2GB
Storage
  • eMMC 16GB
  • 1 x Micro SD/SDHC slot (Up to 1TB)
I/O Interfaces
  • 2 x full modem RS-232/422/485 (DB-9)
  • GPIO 6 bit (3 in, 3 out)
  • 1 x USB 3.2 Gen 1 (5Gb/s) TypeA-OTG
  • 1 x USB 2.0 Type A
  • 1 x GbE RJ45 w/ 802.3at Type2 “PoE+”
  • 2 x CANBUS-2.0
  • 4 x IIC, 4 x GPIO, 2 x ADC, 1 x UART(SPI)
  • 1 x 10/100M Ethernet(Option)
Wireless Communication (Optional) Wi-Fi + BT V4.1
Power
  • DC9-36V input (Terminal block-3pin-3.81mm)
  • Consumption: 12V @ 1.2A (MAX. 14.4w)
OS
  • Android
  • Linux Debian
  • Watch Dog Timer: Support
Mounting
  • Panel Mounting / Clips Mounting
Reliability
  • Operating Temperature -10°C ~ 50°C with air flow
  • Storage Temperature -20°C ~ 60°C
  • Humidity 10% ~ 90%, non-condensing
  • Weight(Net) 0.85 kg
  • Safety CE/FCC class-A compliant
Downloads
FES070E7 IO APP Download
FES070E7 2D Drawing Download
FES070E7_UM_V11.pdf Download
