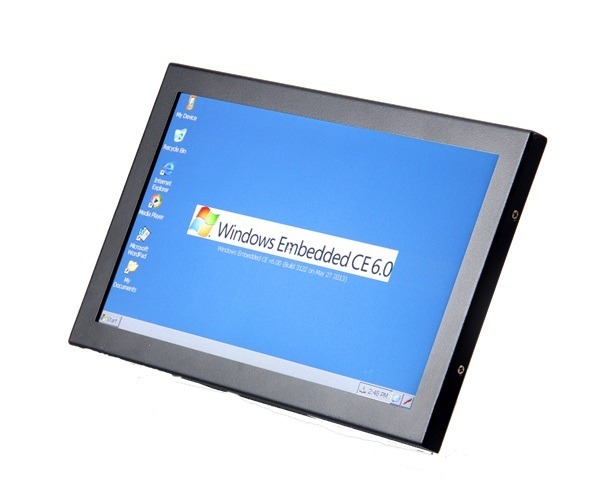

FES911W-070

Industrial HMI Panel PCs
.Atmel AT91SAM9M10 @400MHz, 32 bit RISC architecture core with resistive Touch
.Built in 128MB, DDR2 memory / 2 Gbit NAND Flash memory
.External ports RS232/422/485x2, CANx1, GPIOs for industrial use.
.OS: WinCE6.0
Product Features
Chassis Case: Metal upper/lower lid with black coating(option)
TFT Panel: 7”, 800x480, 16.7M colors, 400 nit
Touch Panel: Resistive
Operating System: WinCE 6.0
Mounting: VESA mounting
I/O: RS232/422/485x2,CANx1, GPIOs
Power: DC 9V-28V
Specification
Processor Atmel AT91SAM9M10 @400MHz, 32 bit RISC architecture ARM926EJ core
Memory DDR2-64MB or 128MB
Storage eMMC-2GB
OS WinCE6.0
LCD Panel 7" TFT (800x480), 400 cd/m2, CR500, 16M color
Ethernet 1 x RJ45-10/100/1000 Mbps
USB Port 1 x USB 2.0 device & 1 x USB 2.0 Host
SD Slot 1 x Micro SD/SDHC card slot
Power Jack 1 x Power Jack
WIFI 1 X WiFi (optional)
Audio AC97 Codec, AMP inside for Ext. Stereo speaker 80hm/ 1W.
Touch 4-wires resistive touch
Serial Port RS232
Extension Port1 Including programmable 10x16 pin, Including 10 bit high speed A/D converter channel x 4, Including PWM channel x2
Extension Port2 Including SPI port x2, COM4 (3 wire RS232 only)
Operating Temperature Industrial version :-20°C to 80°C
Operating Humidity 10% to 90% (non-condensing)
Cooling System Cooling System
Power Input DC 9V~28V
Dimensions 176.2 mm ( W ) x 106.2 mm ( H ) x 33.6mm ( D ).

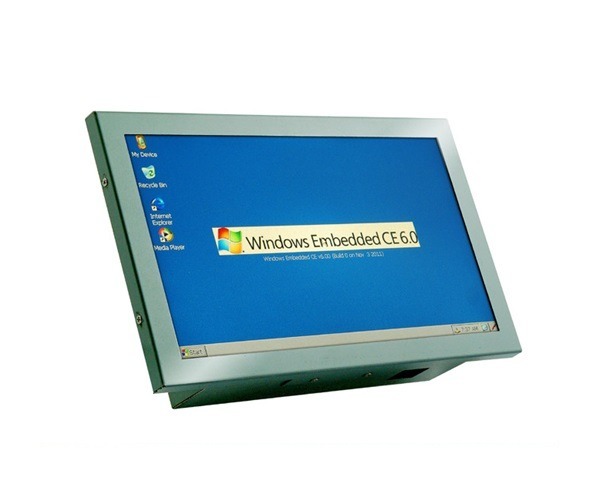

Chassis gray/ black metal
Downloads
FES911W-070 2D Drawing Download
FES911W-070 User Manual Download
